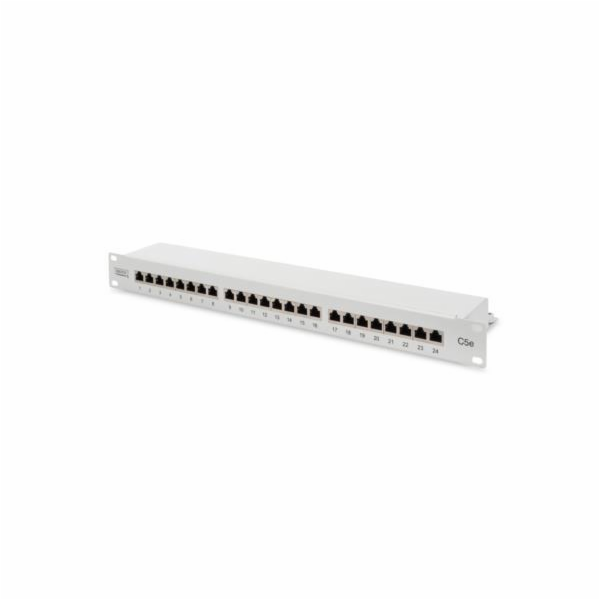

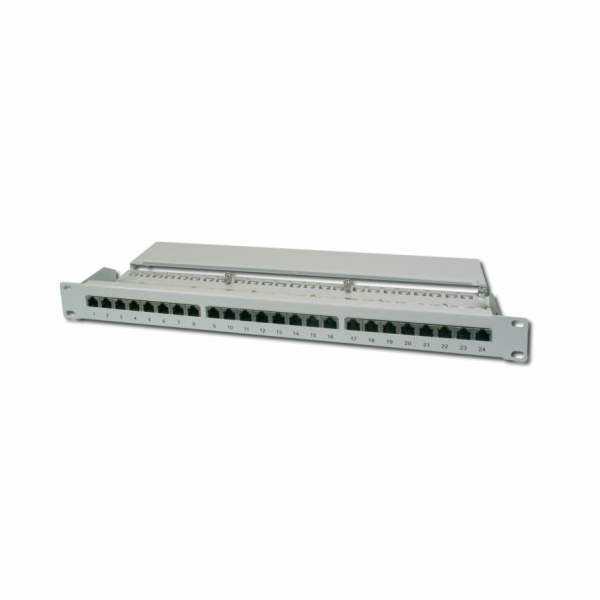

Digitus Patch Panel, CAT5E, stíněný, 24x 8P8C LSA, 1U, šedý

Digitus Patch Panel, CAT5E, stíněný, 24x 8P8C LSA, 1U, šedý
1046 Kč
864 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: DN-91524S
Kód produktu: 6385655
Výrobce: Digitus
Váha: 1,66
Záruka: 23 měsíců
Popis produktu: DIGITUS 19" CAT 5e patch panel, shielded
24-port RJ45, 8P8C, LSA, 1U Color grey RAL 7035
Best performance and link quality for your network.

Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A B
Cable fixing with cable tie
Central ground connection
360° shield coverage
Mechanical properties:
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Category: CAT 5e
Ports: 24
Color: light grey, RAL 7035
Units: 1
Dimensions (HxWxD): 44,483,109 mm

Výrobek je dodáván s manuálem pouze v anglickém jazyce.
