Digitus SoHoline 12U 19" Wall Mount hloubka 560 mm
5312 Kč bez DPH
|Part no.:|| DN-19 12U-6/6
|Kód produktu:|| 6388671
|Záruka:|| 23 měsíců
SoHoline 12U 19" Wall Mounting Cabinet,
Grey Color RAL 7035, weight 32 kg, šířka 600x výška 536/604 (vnitřní/vnější) x hloubka 560mm

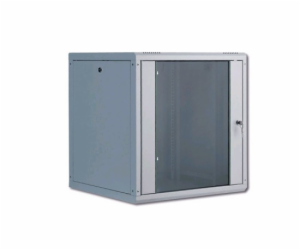

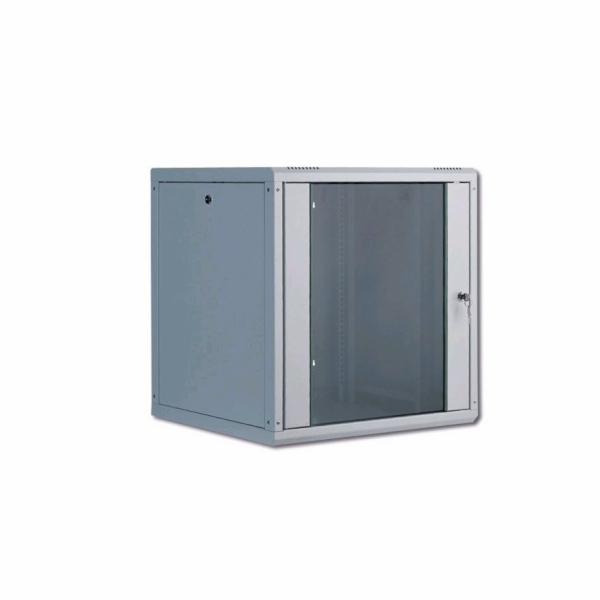

DIGITUS 12U wall mounting cabinet
624x600x560mm, Color grey RAL 7035
• 1.1 – 1.5mm strong sheet steel with high load capacity, powder coated
• Side sections detachable and lockable
• Ventilation slots for active and passive ventilation and exhaustion
• IP 40 rating
• Safety-glass door with steel frame, lockable; optionally available with two openable doors
• 483mm (19") profile rails on front and rear sides, adjustable in depth
• Cable entry on top and bottom
• Inclusive 8 pieces mounting set
• Extensive range of accessories available
• Color: light grey, RAL 7035
The SOHOline cabinets provide an economic solution cabling installations. This series is a range of wall mounted or/and free standing enclosures used in offices for horizantal segments where a reduced amount of U height is required. Again the aesthetics creating a pleasing and professional look.
Attention to styling with light grey Ral7035 with a smoked glass door reinforced with vertical left and right metal frames mean that cabinets can be deployed in the most demanding of office environments when looks really matter. Front door frames is available with decorative trim or customized as blue, green, light blue, red.
Optimal mounting, hinging and panel mounting arrangements create a variety of equipment mounting an access arrangements. This allow the PROline to be used in almost all locations.
Completely standart SOHOline wall mounting cabinet is delivered as a single enclosure and assembled.
Wall mounted cabinets could be used as free standing by using accessories castor or levelling feet under a table or in any enviroment.
• 19” mounting to IEC 297-1
• Overall cabinet dimensions to IEC 297-2
•Easy to access
Front door features a full-length smoked and shatterproof glass door with decorative accent trim reinforced with left/right metal frames and integral locking mechanism.
Side doors; lockable, removable complete with a locks.

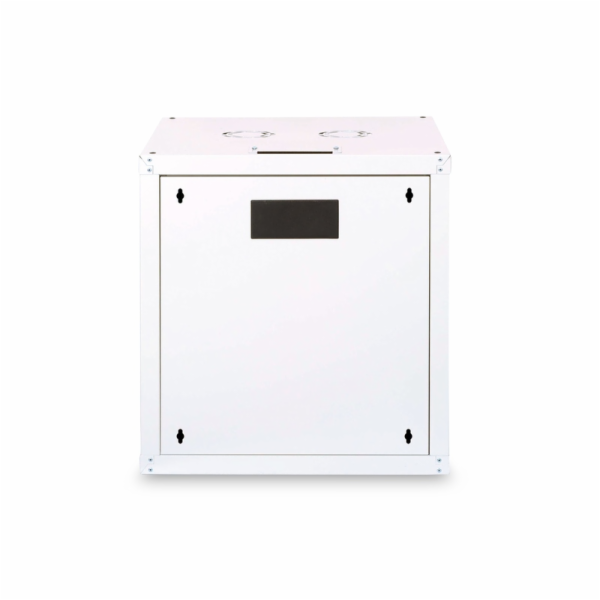

Rear door; mechanically lockable, removable
It is used as mounting plate at the same time. When mounting the enclosure, rear door is removed and mounted directly to wall and enclosure plug-in to the rear door. It’s benefits that, straight on wall, fast installation, low manpower, save time and cost-effective solution.
All giving you 4-way access to equipment.
Multiple cable entry points on top(1ea) and bottom(1ea), provide maximum versatility. There is a rubber edge sliding cover mechanism that protects and fix the cables.
On the rear door, there is also a cable entry hole closed with cover. When it is used, it is replaced with one of top/bottom rubber edge sliding cover mechanism.
Rigid welded frame construction is in steel sheet. Corner of bases have welded sockets on each corner that tightly fixed into the columns gives maximum stability.
Frames are made with 24-fold design for increased stability.
Vented top cover provide passive heat transportation via convection. There are vented fan holes suitable for cooling unit. (see accessories)
19” mounting angles (front/2ea.) allow for flexible configuration and adjustable in depth.
