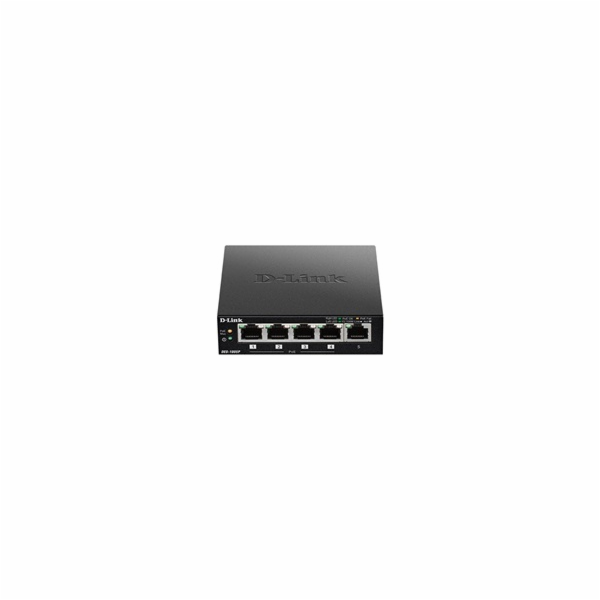

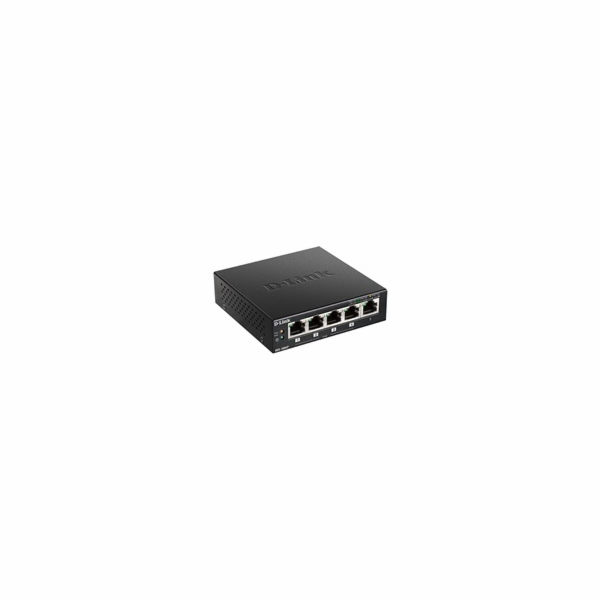

D-Link DES-1005P 5-Port Fast Ethernet PoE Desktop Switch

D-Link DES-1005P 5-Port Fast Ethernet PoE Desktop Switch
1320 Kč
1091 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dny
Part no.: DES-1005P/E
Kód produktu: 11579383
Výrobce: D-LINK
Záruka: 58 měsíců
Popis produktu: Key Features

��Five 10/100 Mbps Fast Ethernet ports with one PoE enabled port
��Auto MDI/MDIX Crossover for all ports
��Store-and-forward Switching Scheme
��Full/half-duplex for Ethernet/Fast
Ethernet Speeds
��IEEE 802.3x Flow Control
��Plug-and-play Installation
��Built-in D-Link Green Technology
��RoHS Compliant
��IEEE 802.1p QoS (4 Queues, Strict Mode)



Switching Capacity

��1 Gbps



Standards

��IEEE 802.3 10BASE-T Ethernet
��IEEE 802.3u 100BASE-TX Fast Ethernet
��ANSI/IEEE 802.3 NWay Auto-negotiation
��IEEE 802.3x Flow Control
��IEEE 802.1p QoS



PoE Features

��Supports IEEE 802.3af
��Supplies power to PD: up to 15.4 watts
��Total PoE budget: 15.4 watts
��PoE port count/Average PoE watts



Data Transfer Rates

��Ethernet:
��10 Mbps (half duplex)
��20 Mbps (full duplex)
��Fast Ethernet:
��100 Mbps (half duplex)
��200 Mbps (full duplex)



Topology

��Star



Media Interface Exchange

��Auto MDI/MDIX adjustment for all ports



Network Cables

��10BASE-T
��UTP CAT 3/4/5/5e (100 m max.)
��EIA/TIA-586 100-ohm STP (100 m max.)
��100BASE-TX
��UTP CAT 5/5e (100 m max.)
��EIA/TIA-568 100-ohm STP (100 m max.)



LED Indicators

��Per port: Link/Activity/Speed/PoE Status
��Per device: Power/PoE Max



Transmission Method

��Store-and-forward



MAC Address Table

��2K Entries per device



MAC Address Learning

��Automatic update



Packet Filtering/Forwarding Rates

��Ethernet: 14,880 pps per port
��Fast Ethernet: 148,800 pps per port



RAM Buffer

��64 KBytes per device



Power Consumption

��Power On (Standby):
��DC input: 0.9 watts
�AC input: 1.8 watts��
Maximum (PoE Off)
��DC input: 2.05 watts
��AC input: 2.7 watts
��Maximum (PoE On)
��DC input: 17.29 watts
��AC input: 20.2 watts



Power Adapter

��Switching 48 V/0.5 A Level V power adapter



MTBF

��324,616 hours



Operating Temperature

��0 to 40 °C (32 to 104 °F)



Storage Temperature

��-40 to 70 °C (104 to 158 °F)



Operating Humidity

��0% to 95% RH non-condensing



Storage Humidity

��0% to 95% RH non-condensing



Device Dimensions (W x D x H)

��140 x 85 x 28 mm (5.5 x 3.3 x 1.1 inches)



Certifications

��FCC Class B
��ICES-003 Class B
��cUL
