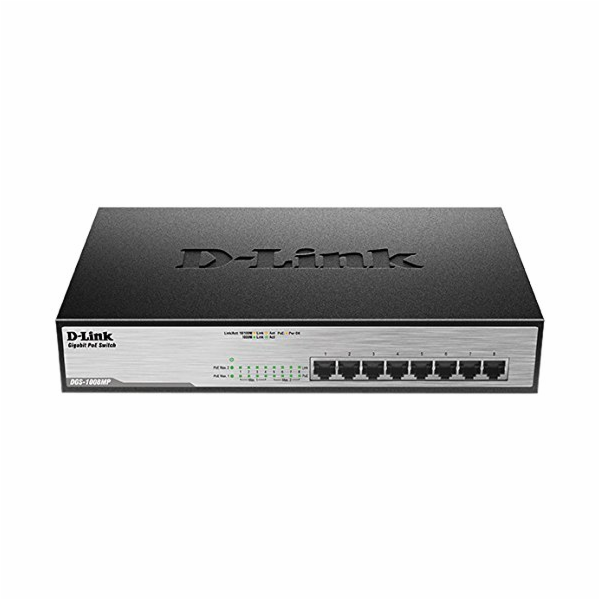

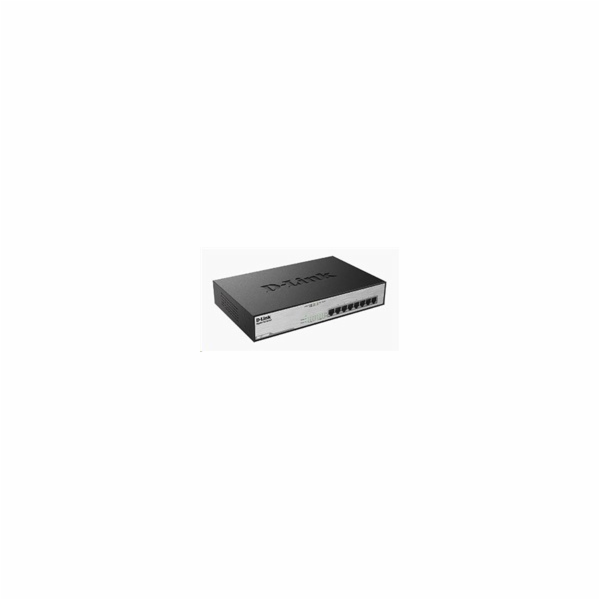

D-Link DGS-1008MP 8 Port Desktop Switch with 8 PoE Ports

D-Link DGS-1008MP 8 Port Desktop Switch with 8 PoE Ports
3726 Kč
3079 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: DGS-1008MP
Kód produktu: 35277970
Výrobce: D-LINK
Záruka: 24 měsíců
Kalkulačka splátek CETELEM
Kup teď 373,- Později 10 splátek
Popis produktu: Technical Specifications

General

Size

11-inch Desktop/Rackmount size, 1U height

Number of Ports

8 10/100/1000 Mbps Ports

Port Standards & Functions

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control supports half/full duplex mode
ANSI/IEEE 802.3 NWay auto-negotiation

Switching Capacity

16 Gbps switching fabric

Media Interface Exchange

Auto MDI/MDI-X

Transmission Method

Store-and-forward

MAC Address Table

8K entries per device

Packet Buffer Memory

128 KB per device

Packet Filtering / Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port

Data Transfer Rates

Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet
2000 Mbps (full duplex)

Network Cables

10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 max.)
1000BASE-T
UTP CAT 5/5e(100 m max.)
EIA/TIA-568 100-ohm STP(100 max.)

Physical

LED Indicators

Per port: Activity / Link and Speed
Per port: Power / Status
PoE Max 1: Ports 1-4
PoE Max 2: Ports 5-8

Dimensions

280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches)

Power Input

AC Input: 100 to 240 V AC, 50/60 Hz

Maximum PoE Budget

140 watts

Power Consumption

13.5 watts (PoE off)
151 watts (PoE on)
PoE up to 30 watts per port

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)

Humidity

Operating: 0% to 95% RH non-condensing
Storage: 5% to 95% RH non-condensing

EMI

CE Class A
FCC Class A
VCCI Class A
CCC Class A
BSMI Class A

Safety

cUL
CB
LVD
CCC
BSMI
