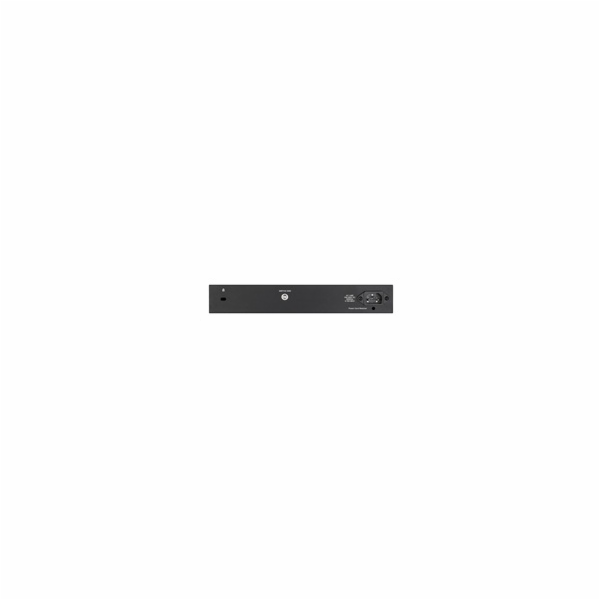

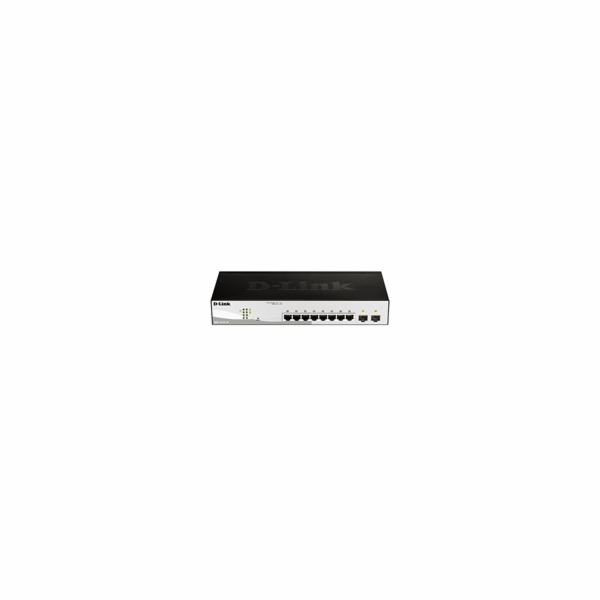

D-Link DGS-1210-10 10-Port Gigabit Smart Managed Switch (fanless)

D-Link DGS-1210-10 10-Port Gigabit Smart Managed Switch (...
3089 Kč
2553 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dny
Part no.: DGS-1210-10
Kód produktu: 28376551
Výrobce: D-LINK
Záruka: 10000 měsíců
Kalkulačka splátek CETELEM
Kup teď 309,- Později 10 splátek
Popis produktu: D-Link DGS-1210-10 10port Gbit Smart Sw,2xSFP

OVERVIEW
D-Link’s DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility,
and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritised for a smoother voice performance.

SPECIFICATIONS
INTERFACE
Number of 10/100/1000BASE-TX ports

8 ports

Number of SFP ports

2 ports

PERFORMANCE
Switch Capacity

20 Gbps

64-Byte Packet Forwarding Rate

14.88 Mpps

MAC Address Table Size

16K

Packet Buffer

1.5 MB per device

Jumbo Frame

Up to 9,216 Bytes

PHYSICAL & ENVIRONMENTAL
Power Consumption (Standby/Maximum)

9.4W / 13.59W

Power Input

10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)

280 x 168 x 44 mm

Weight

1.54 kg

Ventilation

faneless

Heat Dissipation

46.37 BTU per hour

Temperature

Operating: -5° to 50°C
Storage: -20° to 70°C

Humidity

Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing

Certification

CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

SOFTWARE FEATURE
L2 Features

MAC Address Table

- 16K entries

IGMP Snooping

- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier

Loopback Detection
802.3ad Link Aggregation:

- Maximum of 5 groups/8 ports per group

LLDP
LLDP-MED
Jumbo Frame

- Up to 9,216 bytes1

Spanning Tree Protocol

- 802.1D STP
- 802.1w RSTP

Flow Control

- 802.3x Flow Control
- HOL Blocking Prevention

Port Mirroring

- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both

Multicast Filtering

- Forwards all unregistered groups
- Filters all unregistered groups

Configurable MDI/MDIX

- MLD snooping v1/v2 (256 groups)

VLAN

802.1Q
VLAN Group

- Max. 256 static VLAN groups

Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN

- Max. 10 user-defined OUI
- Max. 8 default OUI

Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
8 queues per port2
Queue Handling

- Strict
- Weighted Round Robin (WRR)

Bandwidth Control

- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)

QoS based on:

- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port

L3 Features

IP Interface

- Supports 1 interface

IPv6 Neighbor Discovery (ND)

Access Control List (ACL)

Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv63
Each rule can only be associated with a single port
ACL based on

- 802.1p priority
- VLAN
- MAC address

Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class

Security

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)

- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping

802.1X Port-based Access Control
ARP Spoofing Prevention

- Max. 64 entries

Traffic Segmentation
SSH v2
SSL

- Supports v1/v2/v3

Port Security

- Supports up to 64 MAC addresses per port

Duplicate address detection

AAA

802.1X Authentication

- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP

IPv6 RADIUS Server
Support MD5 authentication

MIB/RFC Standards

RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB

OAM

Cable Diagnostics
Factory Reset

Management

Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX

- SNMP

Supports v1/v2c/v3
SNMP Trap
Backup/Upgrade firmware
Smart Wizard
Upload/Download Configuration file
System Log

- Max. 500 log entries

BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time Setting

- SNTP

RMONv1
Trusted Host

Green V3.0 Technology

Power Saving by

- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
- LED Shutoff
- System Hibernation
- Port Shutoff
