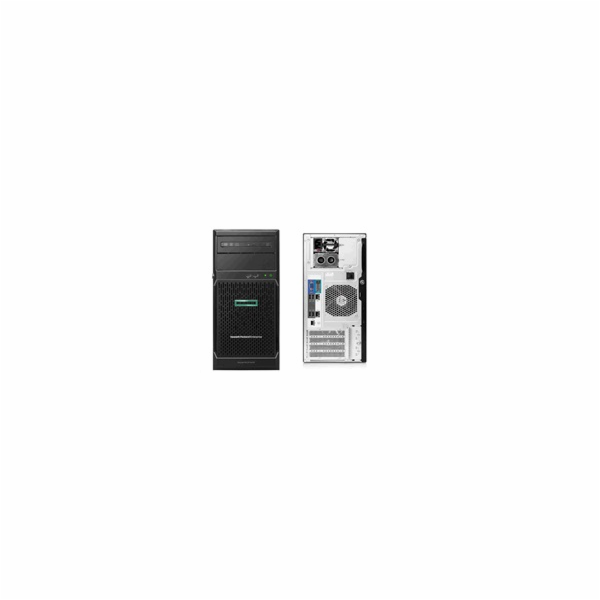

The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 8SFF HP VROC 1x800W L9 2x1G TPM NBD311





Performance Models




SKU Number


P66396-421




Model Name


HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 8SFF 800W RPS Server




Chassis


HPE ProLiant ML30 Gen10 Plus 8SFF Hot Plug Configure-to-order Server




Processor


E-2314 (4 core, 2.8 GHz, 65W)




Number of Processors


One




Memory


16 GB (1x16 GB UDIMM, 3200 MT/s)




Network Controller


Embedded 1Gb 2-Port Ethernet Adapter




Storage Controller


Embedded Intel VROC SATA software RAID Notes: 4 SATA ports support drive bays, 2 SATA ports support optional HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot.




Included Hard Drives


None ship standard, 8 SFF supported




Internal Storage


8 SFF HDD Bays (Hot Plug) 1 M.2 PCIe 3.0 x2/SATA slot




Optical Drive Bay


Optional Slimline ODD Bay Kit (P06309-B21) consumes 1 media bay. Notes: Up to 1 optical drive bay




Optical Drive


Optional




Expansion Slots


1 PCIe 4.0 slots, 3 PCIe 3.0 slots




Power Supply


1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit Notes: Add a second 800W Flex Slot Power Supply to get 1+1 power redundancy feature.




Fans


1x non-hot plug non-redundant system fan




Management


Included - HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download)




Security


TPM (Trusted Platform Module)




Form Factor


4U Tower




Warranty


Server warranty includes 3-year parts, 1-year labor, 1-year onsite support with next business day response. Notes: APAC, Japan, and PRC Server Warranty include 3-year parts, 3-year labor, 3-year onsite support with next business day response.




What s New

Support Intel Xeon E-2300 processors up to 8 cores and Pentium processors.
3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity.
Four expansion slots for flexible usage - two x16 and two x8 connectors, one powered by PCIe 4.0 x16.
Support for one onboard M.2 NVMe/SATA SSD.
Dedicated iLO port & serial port option kit.


Chipset
Intel C256 Chipset
Notes: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset
HPE iLO 5 ASIC
Notes: Read and learn more in the HPE iLO QuickSpecs.

Memory

Type
HPE DDR4 Standard Memory, Unbuffered (UDIMM)
DIMM Slots Available
4
4 DIMMs (2 Channels/ 2 DIMMs per channel)
Maximum Capacity (UDIMM)
128GB
(4 x 32GB UDIMM @3200 MT/s)
Notes: The maximum memory speed depends on processor model.

Memory Protection
ECC


Expansion Slots

Expansion Slots #
Technology
Bus Width
Connector Width
Form Factor
Notes
1
PCIe 4.0
x16
x16
Full height, full length
Processor
2
PCIe 3.0
X4
X8
Full height, half length
PCH
3
PCIe 3.0
X4
X16
Full height, full length
PCH
4
PCIe 3.0
X4
X8
Full height, half length
PCH
Notes:
- Bus Width indicates the number of physical electrical lanes running to the connector.
- Slot 1 supports only PCIe 3.0 when a Pentium processor is installed.

Network Controller
Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
The HPE ProLiant ML30 Gen10 Plus server offers the customer a dual-port NIC as standard with the option to upgrade with a variety of networking options.
Notes: Support document and downloads including firmware and drivers for the Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T LOM Adapter can be downloaded from the supplier s support and services webpage.

Internal Storage Devices
Optical Drives None ship standard.
Optional: SATA 9.5mm DVD-RW/DVD-ROM Optical Drive
Hard Drives None ship standard

Storage Controller
Software RAID
Intel VROC SATA (formerly known as Intel RSTe)
Notes:
- The embedded Intel Virtual RAID on CPU (Intel VROC) is the SATA software RAID controller supported in this server.
- All models feature an embedded storage controller Intel VROC SATA. This product supports 4 SATA ports for drive bays, 2 SATA ports for media bays or HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot.
- BIOS Default is SATA AHCI. Embedded Intel SATA VROC is disabled by default. Embedded Intel SATA VROC can be enabled in BIOS/Platform Configuration (RBSU) for SW RAID features.
- RAID support - 0/1/5/10.
- RAID setting cannot be factory ordered/configured for use with Intel VROC SATA as Intel VROC SATA must be enabled in BIOS by customer.
- Intel VROC SATA does not support RAID volume creation with different form factors of drives (e.g., SFF + M.2)
- Intel VROC SATA RAID supports Windows Server and Linux, but does not support VMware.
- Intel VROC SATA will operate in UEFI mode, Windows OS environment, and Linux OS environment.
- Both Intel Xeon E processors and Intel Pentium processors support Intel VROC SATA Raid.
- See HPE Support Center for additional information regarding installation of Intel VROC (SATA RAID): Enabling Intel VROC (SATA RAID) for SATA or SATA on BIOS/Platform configuration (RBSU)
o Windows Edition
o VMware Edition
o Linux Edition

- Intel VROC SATA RAID cannot be created in Intelligent Provisioning. It must be installed manually.
- Intel VROC requires the server boot mode to be set to UEFI Mode.
- Obtain the Intel VROC downloads (drivers, GUI) specific for your system OS. For direct download links, see the OS-specific VROC guide: https://www.hpe.com/support/IntelVROC-Gen10Plus-docs
- Intel VROC supports RAID management though the following tools:
o Non-OS specific: UEFI System Utilities
o Windows: Intel VROC GUI, Intel VROC CLI.
o Linux: mdadm CLI
Essential RAID Controller
HPE Smart Array E208i-p SR Gen10 Controller HPE Smart Array E208e-p SR Gen10 Controller Performance RAID Controller
HPE Smart Array P408i-p SR Gen10 Controller HPE Smart Array P408e-p SR Gen10 Controller Notes:
- Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) or the HPE Smart Hybrid Capacitor (P02377-B21) which are sold separately.
- ML30 Gen10 Plus does not support internal RAID Controller E208i-p and P408i-p in NHP models.
- For additional details of HPE Smart Array, please see HPE Smart Array Gen10 Controllers QuickSpecs.

Maximum Internal Storage
Drive
Capacity
Configuration
Hot Plug LFF SAS
72 TB
4 x 18 TB
Hot Plug LFF SATA
72 TB
4 x 18 TB
Hot Plug SFF SAS
19.2 TB
8 x 2.4 TB
Hot Plug SFF SATA
16 TB
8 x 2 TB
Non Hot Plug LFF SATA
16 TB
4 x 4 TB
Hot Plug LFF SATA SSD
3.84 TB
4 x 960 GB
Hot Plug SFF SAS SSD
7.68 TB
8 x 960 GB
Hot Plug SFF SATA SSD
61.44 TB
8 x 7.68 TB
M.2 SATA SSD
2.88 GB
3 x 960 GB (with HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit)
M.2 NVMe SSD
1.92 TB
1 x 1.92 TB
Notes: M.2 SSD is applicable to all models.

Graphics
Integrated Video Standard
Video modes up to 1920 x 1200 @60Hz (32 bpp) 16MB Video Memory HPE iLO 5 On System Management Memory
32 MB Flash 4 Gbit DDR 3 with ECC protection


Power Supply
HPE 350W Gold-level Power Supply FIO Kit Notes: Available in 92% and 94% efficie...

---
