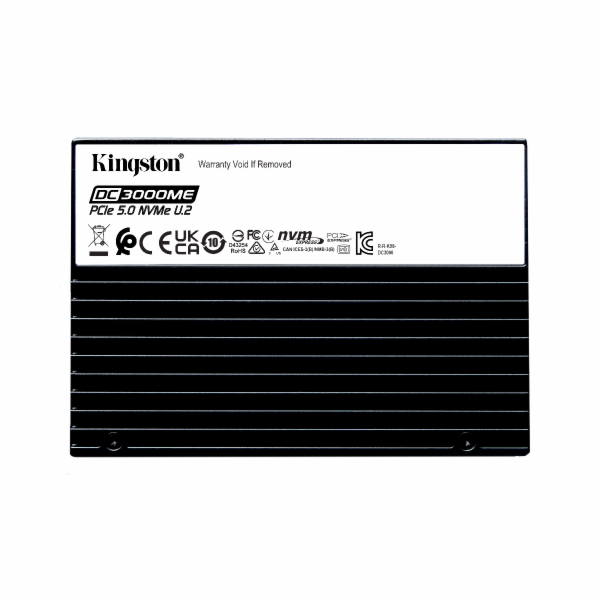

Kingston Flash 15.36TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
DC3000ME PCIe 5.0 NVMe U.2 SSD
Enterprise-class Gen5 NVMe U.2 SSD with power loss protection for server applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilises 3D eTLC NAND, making
it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge
computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES
256-bit encryption for ultimate data security. DC3000ME utilises the latest high-speed PCIe 5.0 interface and is backwardcompatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O
consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service
providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB1
capacities and is backed by Kingston s
legendary technical support and a 5-year limited warranty.
Enterprise PCIe 5.0 performance
Optimal storage and efficiency
On-board power loss protection (PLP)
AES 256-bit encryption
DC3000ME is ideal for running a wide range of server applications and workloads including:
AI
HPC
Cloud services
Edge computing
Software-defined storage
RAID
General server use
Key Features
Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained
speeds of up to 14,000MB/s read and 2,800,000 read
IOPS2
.
Optimal storage and efficiency
High-capacity options available offering an exceptional
balance of consistent I/O delivery and ultra-high
performance. Optimised to handle a wide range of server
workloads efficiently.
On-board power loss protection (PLP)
Enterprise-class protection to reduce the possibility of data
loss or corruption on ungraceful power fails, including
NVMe-MI 1.2b out-of-band management, end-to-end data
protection and TCG Opal 2.0.
AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based
encryption and TCG Opal 2.0.
Form factor U.2, 2.5” x 15mm
Interface PCIe NVMe Gen5 x4 (backward compatible with Gen4)
Capacities1 3.84TB, 7.68TB, 15.36TB
NAND 3D eTLC
Sequential read/write2 3.84TB – 14,000MB/s / 5,800MB/s
7.68TB – 14,000MB/s / 10,000MBs
15.36TB – 14,000MB/s / 9,700MB/s
4k random read/write (IOPS)2 3.84TB – 2,700,000 / 300,000
7.68TB – 2,800,000 / 500,000
15.36TB – 2,700,000 / 400,000
Latency quality of service (QoS)2
,
3
,
4
99% - read/write: <10 µs / < 70 µs
Static and dynamic wear levelling Yes
Power loss protection (power caps) Yes
Encryption Yes - TCG Opal 2.0, AES 256-bit encryption
Namespace management support Yes - 128 namespaces supported
Enterprise diagnostics Telemetry, media wear, temperature, health, etc.
Endurance (TBW/DWPD)5 3.84TB – 7,008TB, 1DWPD (5 years)
7.68TB – 14,016TB, 1DWPD (5 years)
15.36TB – 28,032TB, 1DWPD (5 years)
Power consumption Idle: 8W
Max read: 8.2W
Max write: 24W
Operating temperature 0? ~ 70?
Dimensions 100.50mm x 69.8mm x 14.8mm
Weight 3.84TB – 146.2g
7.68TB – 151.3g
15.36TB – 152.3g
Vibration non-operating 10G peak (10–1000Hz)
MTBF 2 million hours
Warranty/support6 Limited 5-year warranty with free technical support
