ADATA XPG CORE REACTOR II VE 650W 80 PLUS GOLD

Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 10 / 5
Přehřátí (OTP): ano
Proudové špičky (OCP): ano
Přetížení (OPP): ano
Zkrat (SCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
El. impulzy (SIP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 120
Rychlost ventilátoru +/- 10% (U/Min): 2400
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Životnost / MTBF (hod): 100000
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 2x 4+4pin
PCIe: 2x 6+2pin
16-Pin (12VHPWR, PCIe 5.0): 1x 450W
S-ATA: 6x
P-ATA / IDE: 2x
Výkon (Watt): 650
Form faktor: ATX
Verze ATX: 3.1
Hladinu hluku při plné zátěži: 29,41
certifikace: 80PLUS Gold
Barva: černá
Šířka (mm): 140
Výška (mm): 86
Hloubka (mm): 150
Hmotnost (kg): 1,29

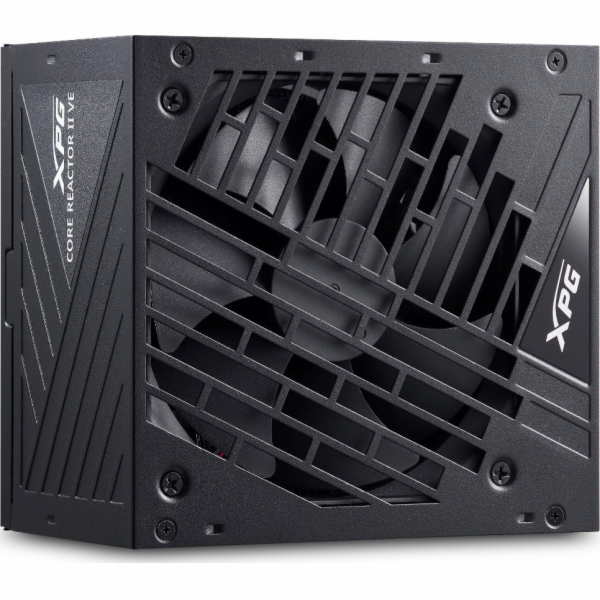

ADATA XPG CORE REACTOR II VE 650W 80 PLUS Gold, fully modular

The ADATA XPG CORE REACTOR II VE 650W 80 PLUS Gold supplies your PC with up to 650 W of power and features the 80 PLUS Gold certification for high energy efficiency — ideal for stable and economical power delivery. Thanks to its fully modular cables and ATX 3.1 compatibility, it can be installed cleanly and flexibly in many cases and is suitable for modern motherboards and graphics cards. A 120 mm FDB fan keeps the power supply pleasantly quiet even under load, while high-quality components and comprehensive protection circuits ensure reliability and safety. This makes it a solid choice for gamers, creators, or power users who value performance, efficiency, and clean cable management.

Features:


650 W total power
80 PLUS Gold efficiency
Fully modular cable design
ATX 3.1 support with 12V-2×6 GPU connector
DC-DC circuit design for stable voltages
Protection circuits: OCP, OVP, OPP, UVP, SCP, OTP, SIP, NLO
Input voltage: 100–240 V AC, 47–63 Hz
120 mm FDB fan for quiet operation
ATX form factor
MTBF: approx. 100,000 hours
Dimensions: 140 × 150 × 86 mm


Connections/Ports:


1x ATX 24-Pin Mainboard Connector
2x EPS 8-Pin (CPU) Connectors
2x PCIe 6+2-Pin Connectors (4 plugs total, as there are 2 cables with 2 plugs each)
1x 12VHPWR (12+4-Pin) Connector (450W)
6x SATA 15-Pin Connectors
2x Molex 4-Pin Connectors
