Uhlopříčka obrazovky (cm): 69
Velikost obrazovky (palce "): 27
Max. rozlišení (Pixel): 5120 x 2880
Panel: IPS
Touchscreen: ano
Kontrastní poměr: 1000:1
Povrch: Lesk
Jasnost (cd/m2): 400
Poměr stran: 16:9
Horizontální pozorovací úhel (°): 178
Vertikální pozorovací úhel (°): 178
Čas reakce (ms): 14
Curved Design: ne
Energetická třída: F
HDR schopnost: ano
Rozlišení: 5K
Adaptivní synchronizace: ne
Integrovaný reproduktor: ano
Audio výkon (W): 2 x 5
Značka: Alogic
Identifikátor modelu: 27C5KPDT
Třída energetické účinnosti od A (nejvyšší účinnost) do G (nejnižší účinnost): F
Spotřeba energie při provozu (kWh / 1 000 h): 26
Třída energetické účinnosti v režimu HDR od A (nejvyšší účinnost) do G (nejnižší účinnost): G
Spotřeba energie v zapnutém stavu v režimu HDR (kWh / 1 000 h): 48
Viditelná úhlopříčka obrazovky (cm): 69
Viditelná úhlopříčka obrazovky (palce): 27
Rozlišení obrazovky (pixely): 5120 x 2880
Výškově nastavitelné: ano
Sklopný (vpřed / vzad): ano
Otočný (Pivot funkce): ano
Otočný (vlevo / vpravo): ano
Podstavec: součástí dodávky
Držák na zeď: opcionálně dokupitelný
Standardní konzola VESA (mm): 100x100
HDMI 2.0: 1x
DisplayPort: 1x DisplayPort 1.4
Barva: černá / stříbrná
Šířka (cm): 62,4
Výška s podstavcem (cm): 22
Výška bez podstavce (cm): 37,2
Hloubka vč. nohou (cm): 41,5
Hloubka bez podstavce (cm): 4.8
Hmotnost bez podstavce: 4.8

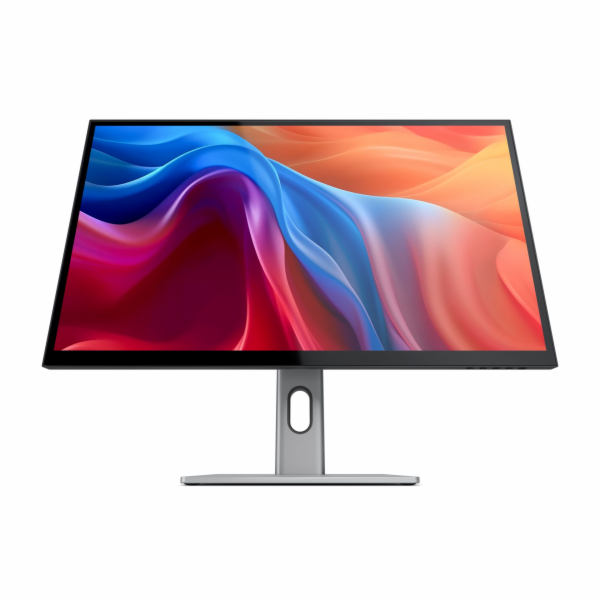

The ALOGIC Clarity 27" 5K Monitor with PD and Touch Screen is a high-resolution touchscreen monitor for professional work environments that require precise display, color-accurate reproduction, and direct interaction. The combination of 5K resolution, capacitive multi-touch support, and integrated USB-C power supply is aimed at creative, visual, and technical workflows with high demands on detail and ease of use.
The screen resolution of 5120 × 2880 pixels is spread over a 27-inch diagonal and achieves a pixel density of 218 pixels per inch. This ensures that content is displayed with exceptional sharpness and clarity, while text, graphics, and fine structures remain precise even at close viewing distances. The glossy display surface with anti-reflective coating supports high-contrast display with a high level of detail.
High-quality screen quality
The IPS panel offers a typical screen brightness of 400 candelas per square meter and a static contrast ratio of 1000:1. Viewing angles of up to 178 degrees horizontally and vertically ensure uniform display even when viewed from the side. The refresh rate is 60 Hertz.
For color-critical applications, the monitor covers 100 percent of the sRGB color space and 99 percent of Adobe RGB, DCI-P3, and NTSC. Factory color calibration achieves an average color deviation of less than Delta E 1. In addition, the display supports HDR400.
Capacitive touchscreen and pen support
The integrated capacitive touchscreen supports 10-point multi-touch input based on One Glass Solution technology. Multi-touch gestures such as zooming, scrolling, and rotating are supported on macOS, Windows, and ChromeOS.
The monitor is compatible with active styluses that comply with the MPP 2.0 standard and is suitable for precise drawing, sketching, annotating, and designing in creative applications.
Available connections
The Clarity 27" 5K Touch Monitor has an integrated USB-C docking function for central expansion of the workstation. The USB-C port provides image signal, data transfer, and power supply simultaneously. The charging power for compatible notebooks is up to 65 watts of power delivery.
The connectivity is complemented by a DisplayPort 1.4 input and two HDMI 2.0 inputs that support resolutions up to 5K at 30 hertz. Two USB-A ports are available for peripheral devices. A USB-B port enables data connection to the host computer, while a 3.5-millimeter audio output supports external audio devices.
Construction, stand, and mounting
The monitor s housing is made of aluminum, glass, and ABS and follows a sleek, professional design language. The included stand supports height adjustment, tilt, swivel, and pivot functions, allowing for ergonomic adjustment to different working positions. The monitor is VESA-compatible according to the FDMI MIS-D standard with 100 × 100 millimeters and can alternatively be mounted with suitable monitor arms or brackets.
27-inch 5K touchscreen monitor with integrated USB-C docking function
IPS panel with glossy, anti-glare display surface and 16:9 aspect ratio
Screen resolution 5120 × 2880 pixels (5K)
Pixel density 218 pixels per inch
Refresh rate 60 hertz
Typical screen brightness 400 candelas per square meter
Static contrast ratio 1000:1
Viewing angle up to 178 degrees horizontally and vertically
Color space coverage 100 percent sRGB, 99 percent Adobe RGB, 99 percent DCI-P3, 99 percent NTSC
Factory color calibration with average color deviation below Delta E 1
Response time 14 milliseconds (gray-to-gray)
HDR400-compatible display
Capacitive 10-point multitouch screen with One Glass Solution technology
Compatible with active styluses according to MPP 2.0 standard
USB-C Power Delivery with up to 65 watts charging power
Integrated speakers with 2 × 5 watts output power
Connections:
1× USB-C 3.0 (5K at 60 Hertz, video, data, power delivery)
1× DisplayPort 1.4 (5K at 60 Hertz)
2× HDMI 2.0 (5K at 30 Hertz)
2× USB-A 3.0
1× USB-B 3.0
1× 3.5-millimeter audio output
VESA mount 100 × 100 millimeters (FDMI MIS-D)
Overall dimensions (including stand): 623.8 × 415.4 × 220 millimeters
Monitor dimensions (without stand): 623.8 × 48.3 × 372.2 millimeters
Weight without stand: 4.8 kilograms
What’s in the box: Alogic Clarity 27" 5K touch monitor, USB-C cable, DisplayPort cable, HDMI cable, USB-B to USB-A cable, power supply, user manual, color calibration report, VESA mounting screws
