Uhlopříčka obrazovky (cm): 102
Velikost obrazovky (palce "): 40
Max. rozlišení (Pixel): 5120 x 2160
Panel: IPS
Touchscreen: ne
Kontrastní poměr: 1200:1
Curved Design: ne
Energetická třída: F
HDR schopnost: ano
Rozlišení: 5K
Integrovaný reproduktor: ano
Audio výkon (W): 2x 3
Značka: Alogic
Identifikátor modelu: 40C5KPDSGR
Třída energetické účinnosti od A (nejvyšší účinnost) do G (nejnižší účinnost): F
Spotřeba energie při provozu (kWh / 1 000 h): 38
Třída energetické účinnosti v režimu HDR od A (nejvyšší účinnost) do G (nejnižší účinnost): F
Spotřeba energie v zapnutém stavu v režimu HDR (kWh / 1 000 h): 38
Viditelná úhlopříčka obrazovky (cm): 102
Viditelná úhlopříčka obrazovky (palce): 40
Rozlišení obrazovky (pixely): 5120 x 2160
Podstavec: součástí dodávky
Držák na zeď: opcionálně dokupitelný
Standardní konzola VESA (mm): 100x100
Barva: šedá

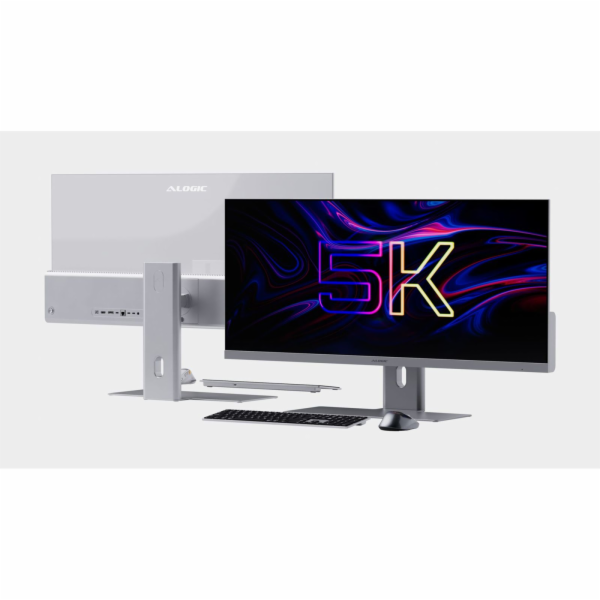

The elegant and state-of-the-art Alogic EDGE 40" LCD 5K monitor with 90W power delivery is designed for professional work and gaming environments where overview, depth of detail, and a central connection solution are required. As an ultrawide monitor in 21:9 format, it offers a generous workspace—ideal for parallel applications, extensive data views, structured workflows, and creative projects.
The razor-sharp 5K2K resolution with 5120 × 2160 pixels extends across the entire display width, enabling clear display of multiple content side by side. This is complemented by a matte, anti-glare surface that reduces reflections and ensures consistent image display in everyday use, even in changing lighting conditions.
High-quality screen
Equipped with a 40-inch IPS panel, the monitor achieves a pixel density of 139 ppi and impresses with its precise, detailed display. The refresh rate of up to 100 Hertz ensures smooth movements and smooth scrolling – whether you re working, gaming, or using creative applications. With a typical brightness of 400 candelas per square meter, a static contrast ratio of 1200:1, and stable viewing angles of up to 178 degrees, the image remains consistent even when viewed from the side.
For color-critical applications, the EDGE 40" monitor covers the sRGB color space, 94 percent Adobe RGB, and 99 percent DCI-P3. The response time is 14 milliseconds (gray-to-gray).
State-of-the-art connections for productive screen time
The EDGE 40" monitor has an integrated USB-C docking station that enables central expansion of the workstation. The USB-C port simultaneously transmits image signals, data, and power for a tidy and efficient workstation. Compatible notebooks can be supplied with up to 90 watts of power delivery.
Additional connectivity options such as HDMI 2.0, DisplayPort 1.4, and an RJ45 Ethernet port ensure flexible connectivity. A 3.5 mm audio output connects external audio devices, while two additional USB-C ports allow for the connection of additional peripherals.
Construction and assembly
The ultra-slim housing combines aluminum, glass, and ABS and is made from 80 percent recycled aluminum, giving it a modern, high-quality design.
Thanks to VESA compatibility, the monitor can be flexibly mounted on suitable brackets. An integrated Kensington Security Slot is also available for use in shared or publicly accessible work areas.
Ultra-wide LCD monitor with 40-inch screen diagonal and 21:9 aspect ratio for large-area working environments
IPS panel with matte, anti-glare surface and a refresh rate of up to 100 hertz
Housing made of aluminum, glass, and ABS, with 80 percent of the aluminum coming from recycled material
USB-C Power Delivery with up to 90 watts of charging power for compatible notebooks
Two integrated speakers with an output power of 3 watts
Integrated USB-C docking function for video transmission, data connection, and power supply:
1× USB-C (video via DisplayPort Alt Mode)
1× HDMI 2.0
1× DisplayPort 1.42× USB-C
1× RJ45 Ethernet
1× 3.5-millimeter audio output
1× Kensington Security Slot
Color space coverage 100 percent sRGB, 94 percent Adobe RGB, and 99 percent DCI-P3
Response time 14 milliseconds (gray to gray)
VESA mount 100 × 100 millimeters (FDMI MIS-D)
Compatible with Apple, Windows, and Chromebook systems with USB-C video (DisplayPort Alt Mode), HDMI, or DisplayPort
Viewing angle up to 178 degrees horizontally and vertically
Screen resolution: 5120 × 2160 pixels (5K2K)
Pixel density: 139 pixels per inch
Typical screen brightness: 400 candelas per square meter
Static contrast ratio: 1200:1
Power supply via external power adapter
Input power: AC 100–240 volts, 50/60 hertz
Output power: DC 24 volts, 7.5 amps, maximum 180 watts
Overall dimensions (including stand): 941 × 245 × 570 millimeters
Maximum height (including stand): 694 millimeters
Monitor dimensions (without stand): 941 × 41 × 419 millimeters
Scope of delivery: Alogic EDGE 40" LCD 5K monitor, DisplayPort cable, USB-C cable, power supply unit
