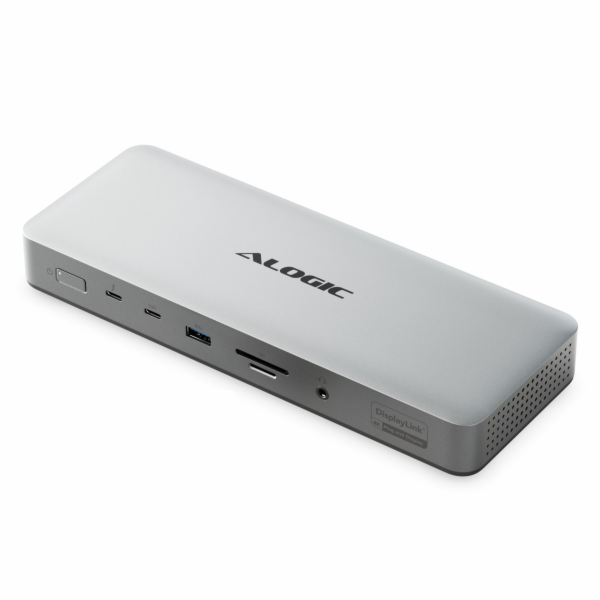

Alogic Quad 4K Thunderbolt 4 Hybrid Docking Station

Elektr. napájecí zdroj: Síťový adaptér
Typ 1: Thunderbolt 4
Počet typu 1: 2x
Typ 2: DisplayPort
Počet typu 2: 1x
Typ 3: HDMI
Počet typu 3: 2x
Typ 4: USB-C
Počet typu 4: 1x
Typ 5: USB-A
Počet typu 5: 3x
Typ 6: LAN (RJ45)
Počet typu 6: 1x
Typ 7: 3,5 mm Jack
Počet Typů 7: 1x
Typ 8: SD
Počet Typů 8: 1x
Typ 9: microSD
Počet Typ 9: 1x
Maximální rychlost přenosu dat (GBit / s): 40
Typ: Thunderbolt 4
Barva: stříbrná
Hmotnost (g): 600

The Alogic Quad 4K Thunderbolt 4 Hybrid Docking Station is a 14-in-1 docking station that expands a laptop s connectivity options and enables the creation of extensive multi-monitor workstations. Combining Thunderbolt 4 technology and DisplayLink video transmission, the dock supports flexible use with different computer systems and is suitable for both Thunderbolt-enabled devices and many USB-C or USB-A-based workstations.

Up to four external displays with 4K resolution can be operated via various video connections. Multiple HDMI, DisplayPort, and Thunderbolt video outputs enable different monitor configurations. The actual number of displays supported depends on the capabilities of the connected computer.
Thanks to the Thunderbolt 4 connection with data transfer rates of up to 40 gigabits per second, fast storage solutions or additional peripheral devices can also be connected. At the same time, the Quad 4K docking station can charge a connected laptop with up to 96 watts of power. A 150-watt power supply with GaN technology provides power for the dock and connected devices.

Made of aluminum and ABS, the housing offers a sturdy construction for use in the office or home office. Additional USB ports, a network connection, and card readers expand the connection options for peripherals, storage media, and input devices. An integrated security lock slot also allows the docking station to be secured in shared work environments.


14-in-1 Thunderbolt 4 docking station for expanding a laptop with numerous connections
Robust aluminum and ABS housing
Support for up to four external displays with 4K resolution
Combination of Thunderbolt 4 and DisplayLink technology for flexible multi-monitor configurations
Thunderbolt 4 connection with data transfer rates of up to 40 Gbps
Laptop charging function with up to 96 watts of power
150-watt power supply with GaN technology to power the docking station and connected devices
Docking station connection options:

1x Thunderbolt 4 port for connection to the host computer
2x Thunderbolt 4 downstream ports with data transfer rates of up to 40 Gbps
1x DisplayPort 1.4 connection
2x HDMI/DisplayPort combo ports with support for 4K at 60 Hertz
1x USB-C 3.2 Gen 2 port with data transfer rates of up to 10Gbps
1x USB-A 3.2 Gen 2 port with data transfer rates of up to 10Gbps
2x USB-A 3.2 Gen 1 ports with data transfer rates of up to 5Gbps
1x RJ45 Ethernet port with 2.5Gbps network speed
1x 3.5mm combo audio/microphone port
1x SD card reader with support for SD 4.0
1x microSD card reader with support for SD 4.0 / UHS-II and transfer rates of up to 312 megabytes per second


Security lock slot for securing the docking station
Compatible with Windows, macOS, and ChromeOS computers
Dimensions 224 × 85 × 28 millimeters
Weight 600 grams
What’s in the box: 1x Alogic Quad 4K docking station, 1x Thunderbolt 4 USB-C cable (80 centimeters), 1x 150-watt power supply, 4x power cables (AU / EU / UK / US), user manual
