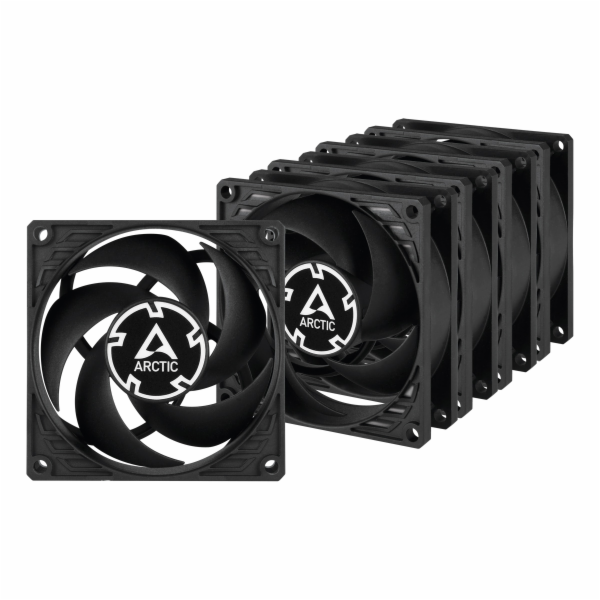

ARCTIC P8 Case Fan - 80mm case fan low noise - Value Pack of 5pcs

P8 Pressure-optimised 80 mm Fan 5pack

OPTIMISED FOR STATIC PRESSURE
During the development of the new P8, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 is particularly suitable for use on heatsinks and radiators.

HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case

QUALITY YOU CAN RELY ON
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer s guarantee on the P8.

TECHNICAL SPECIFICATIONS & MANUAL

General data

Performance

Fan Speed: 3000 rpm
Airflow: 23.4 CFM / 40.3 m3/h
Static Pressure: 1.90 mm/H2O
Noise Level: 0.3 Sone

Fan

Fan Frame: Standard
Controll Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC
Starting Voltage: 0 V
Current/ Voltage: 0.14 A / 12 V
Cable Length: 400 mm

Size & Weight

Length: 80 mm
Width: 80 mm
Height: 25 mm
Weight: 81 g

Packaging

Width: 127 mm
Height: 89 mm
Length: 86 mm
Weight: 0.46 kg
