Thunderbolt™ 3 / USB 3.2 Gen 2 to 12Gb/s SAS RAID Storage
The ARC-8050T3U series are equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals, while also supplying power for quick notebook charging. The ARC-8050T3U also sports a full sized DisplayPort 1.4 video output on its rear, allowing for a quick and easy 8K 30Hz display setup.
If an ARC-8050T3U is plugged in a USB-C (or) USB X.X computer port, a USB device controller inside the ARC-8050T3U-enabled system is activated, and the inside USB device controller drives USB (2.0, USB 3.2 Gen 1, or USB 3.2 Gen 2) signals to the USB-C port. In this condition, the ARC-8050T3U Thunderbolt 3 port behaves exactly like a typical USB-C 3.2 Gen 2-enabled connector.
Thunderbolt™ 3 / USB 3.2 Gen 2 to 12Gb/s SAS RAID Storage
ARC-8050T3U-4 /4A
ARC-8050T3U-6M

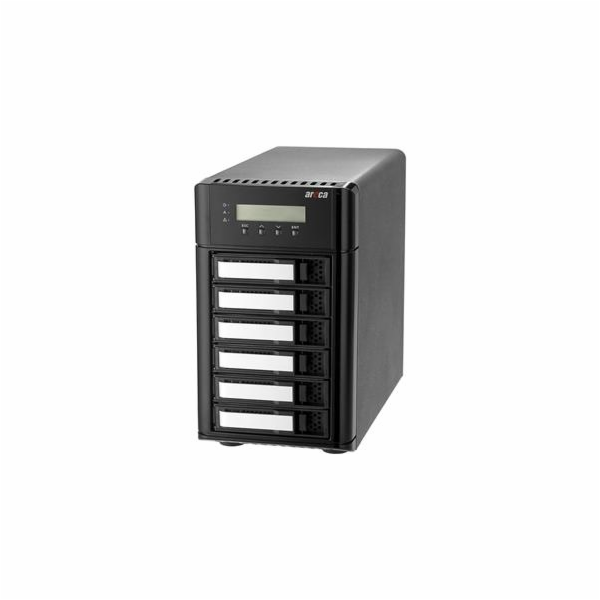

ARC-8050T3U-6
ARC-8050T3U-8
ARC-8050T3U-12
Form Factor
Desktop 4-Bay
Desktop 6-Bay
Desktop 8-Bay
Desktop 12-Bay
Connection
Thunderbolt 3 x 2 / Display Port x 1
Disk Port
4 x 6Gb/s SAS/SATA
6 x / 8 x / 12 x 12Gb/s SAS or 6Gb/s SATA
I/O Processor
One Core 800 MHz SAS ROC
Dual Core 1.2 GHz SAS ROC
On-Board Cache
1GB DDR3-800
2GB DDR3-1866
Expansion Support
N/A
SFF-8644 (2-lanes)
N/A
SFF-8644 (4-lanes)
Cooling Fan
1 x 2700rpm
2 x 2700rpm
Power Supply
135W Adapter: 4/6M(inside), 4A(outside)
180W
270W
400W
Physical Dimensions
(H x W x D)
4.84 x 6.51 x 9.11 in
(123 x 165.6 x 232 mm)
4.84 x 8.45 x 9.11 in
(146 x 255 x 290 mm)
5.7 x 11.8 x 11.4 in
(146 x 302 x 290 mm)
8.1 x 12.2 x 11.4 in
(206 x 310 x 290 mm)
Weight
8.0 lbs / 3.6 Kg
13.2 lbs / 6.0 Kg
14.9 lbs / 6.8 Kg
20.8 lbs / 9.5 Kg
XLR
N/A
4-pin XLR
N/A
RAID Level
0, 1, 10, 3, 5, 6, Single Disk, JBOD
0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD
OS Support
Thunderbolt 3: macOS 10.12 or later & Windows 8/10 or later ;
USB: OS Independent
Computer Port Type
Thunderbolt™ 3 & USB 3.2 Gen 2
Thunderbolt and USB Protocol
in ONE RAID Storage Thunderbolt 3 Port
The existed Thunderbolt 3 port on the RAID storage does not support USB-C computer port compatibility mode. Areca newest ARC-8050T3U Thunderbolt 3 port supports both Thunderbolt 3 and USB protocol that allows USB-only computer user and Thunderbolt computer user to access same storage seamlessly.
Ultrafast Transfer Speed
Unprecedented Performance
ARC-8050T3U-6/6M/8/12 RAID storage is built to deliver unprecedented performance, using only carefully, best-in-class components. These include the dual core LSI SAS2308, 12Gb/s SAS ROC, 2GB DDR3-1866 SDRAM with ECC protection and the latest Thunderbolt3-encbled USB-C ports up to 40Gbps, dual 4K UHD external displays.
Powerful Broadcom 12G SAS Engine
ARC-8050T3U-6/6M/8/12 series integrate the latest Broadcom 12Gb/s dual core SAS Raid-on-Chip to give you the maximum SAS and SATA bandwidth and protection you need to tackle even the hardest challenging tasks easily.
True Hardware RAID Controller
At the heart of ARC-8050TU3-6 RAID storage is the incredibly powerful dual-core Broadcom SAS3108 ROC, giving effortless performance as desirable. It delivers true hardware RAID function without sharing the CPU computing power on the host system and also eases off CPU loading as compared to software RAID and when rebuilding an array in the event of a drive failure.
Speed Up 2GB DDR3-1866 SDRAM
With a massive 2GB of DDR3-1866 SDRAM, ARC-8050T3U-6/6M/8/12 gives you super-smooth multitasking during the period of high overload in 4K environment. ARC-8050T3U can configure how much cache SDRAM dedicated for read, and how much for write. If your server application has significantly more reads than writes or more writes than reads, you might need to change this setting to adjust the read/write cache ratio for improving performance. Big cache is the perfect choice for a 4K application drive, making your professional apps work as fast as possible.
SDRAM
Memory Clock (MHz)
Bus Clock(MHz)
Data Rate(MT/s)
Peak Transfer Rate (GB/s)
DDR3-800
100
400
800
6.4
DDR3-1066
133.33
533.33
1066.67
8.5
DDR3-1866
233.33
933.33
1866.67
14.9
High Bandwidth PCI-E 3.0 Support
To run the PCie 3.0 slots in Gen 3 speed, please must install the ROC which supports PCI Express 3.0. If you install the PCIe2.0 ROC, the PCI Express 3.0 slots will run only at Gen2 speed.
Higher bit rate - 8.0GT/s
Higher bandwidth per lane - 1GB/s
Higher efficiency - 98.5% encoding efficiency
Professional Connectivity
The USB-C That Does It All
ARC-8050T3U is equipped with dual Thunderbolt™ 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals, while also supplying power for quick notebook charging. Thunderbolt 3 supports data transfers up to 40 Gbps, which is twice the bandwidth of Thunderbolt 2 and 4 times faster than USB 3.2 Gen 2.
Daisy-chain Multiple Devices
Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect ARC-8050T3U for massive amounts of video storage with a single Thunderbolt connection to their host computer. Additionally, ARC-8050T3U supports a full sized DisplayPort video output connector on its rear, allowing for a quick and easy 8K 30Hz display setup.
Compatible with Thunderbolt and Thunderbolt 2
The Apple’s Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately) lets you connect Areca ARC-8050T3U solutions to any of the Mac with a Thunderbolt or Thunderbolt 2 port and macOS Sierra 10.12 or later. For more detail information and potential restrictions, please see Apple Support .
Controller-Based H/W Encryption Engine
Host independent real-time controller-based hardware encryption does not impact the performance of ARC-8050T3U-6/6M/8/12 RAID storage and can implement on any kinds of HDD that is transparent to the user, the OS, and applications. Areca encryption function secures a sensitive, mission-critical volume's data from unauthorized access or modification in the event of drive theft, as well as more routine activities such as the return of defective drives for servicing or the decommission or repurposing of drives. Local key management in the controller is designed to protect data from security breaches with minimal cost and complexity. User can use ARC-8050T3U RAID storage API code to design its own key management utility. ARC-8050T3U RAID storages support 128- and 256-bit encryption keys using AES (a key size of 128, or 256 bits), or password (a variable key size).
SED-Based Encryption
Areca firmware Security Function, together with self-en
