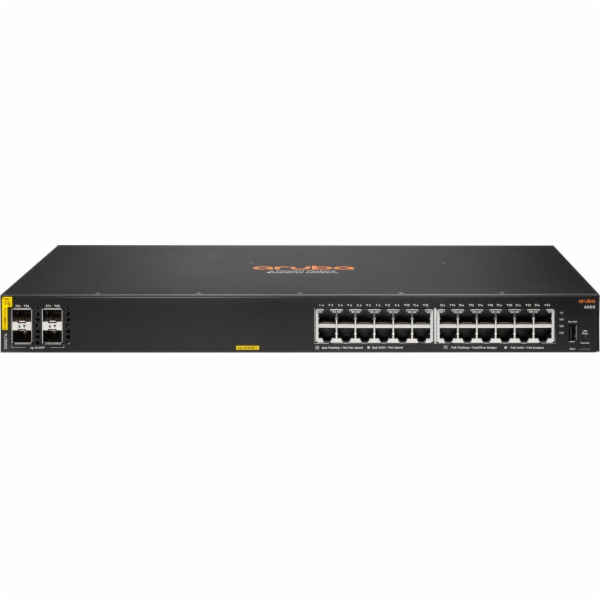

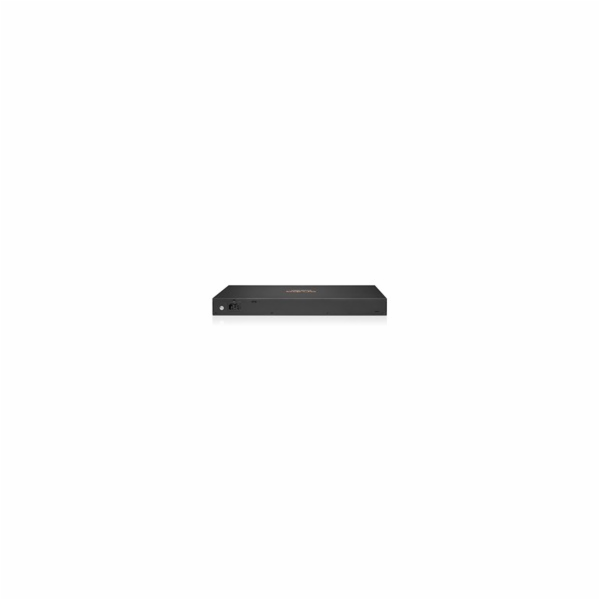

HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch R8N87A
HPE Aruba Networking 6000 Switch Specifications
HPE Aruba Networking 6000 Switch Specifications (comparison)
Model
R8N85A 48G Class4 PoE 4SFP
R8N86A 48G 4SFP
R8N87A 24G Class4 PoE 4SFP
Description
48x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host, PoE (802.3af/at)
48x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host
24x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host, PoE (802.3af/at)
Power Supply
Fixed, 370W PoE
Fixed
Fixed, 370W PoE
Fans
Fixed
Fixed
Fixed
Dimensions (H x W x D)
4.39 cm x 44.2 cm x 30.48 cm
4.39 cm x 44.2 cm x 24.74 cm
4.39 cm x 44.2 cm x 26.82 cm
Weight
5.02 kg
3.42 kg
4.19 kg
CPU
Dual Core ARM Cortex A9 @ 1016 MHz
Memory & Flash
4 GB DDR3, 16 GB eMMC
Packet Buffer
12.38 MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity
104 Gbps
104 Gbps
56 Gbps
Throughput
77.3 Mpps
77.3 Mpps
41.6 Mpps
Latency (1 Gbps, 64-byte LIFO)
1.9 µs
1.9 µs
1.5 µs
Max SVIs
16
Host Tables (IPv4/IPv6)
IPv4: 1024, IPv6: 512
Unicast Routes (IPv4/IPv6)
IPv4: 512, IPv6: 512
MAC Table
8192
IGMP/MLD Groups
512 each
ACL Entries (IPv4/IPv6/MAC)
256 / 128 / 256 (ingress)
Operating Temp
0°C to 45°C (derates above 1.5 km)
Operating Humidity
15% to 95% @ 40°C (non-condensing)
Non-Operating Temp
-40°C to 70°C up to 4.6 km
Altitude (Op / Non-Op)
Max 3 km / 4.6 km
Sound Power / Pressure
4.3 Bel / 29.8 dB
3.6 Bel / 24.6 dB
3.9 Bel / 24.3 dB
Airflow
Side-to-side
AC Power
100-127V / 200-240V, 4.9A / 2.4A
100-127V / 200-240V, 0.8A / 0.5A
100-127V / 200-240V, 4.6A / 2.3A
Power Consumption (230V)
Idle: 30.6W, Max: 45W / 480W (w/ PoE)
Idle: 20.6W, Max: 44.2W
Idle: 22.9W, Max: 32.7W / 455W (w/ PoE)
Mounting
Rack, surface, or wall (kit included)
Compliance - Safety
IEC/EN/UL/CSA 62368-1 (2014/2018)
Compliance - Emissions
FCC, EN, VCCI, ICES, AS/NZS CISPR 32 Class A
Compliance - Lasers
IEC/EN 60825-1:2014, Class 1 (transceivers)
Compliance - Immunity
CISPR 35:2016, EN 55035:2017, IEC 61000 (series)
