Výprodej Aruba 6000 48G 4SFP Switch

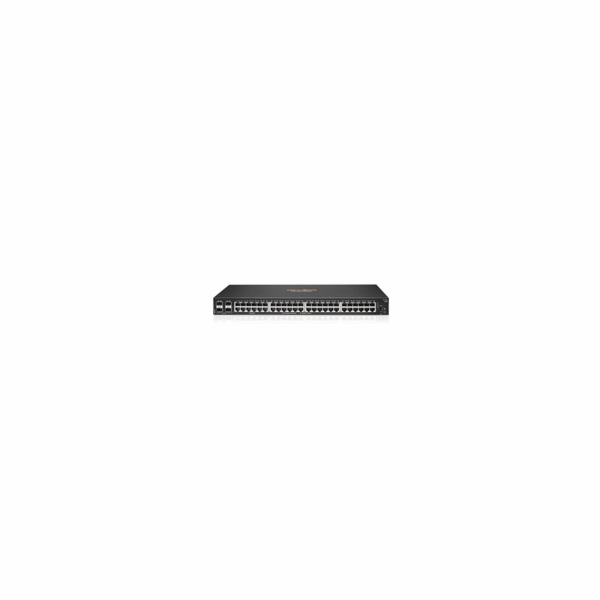

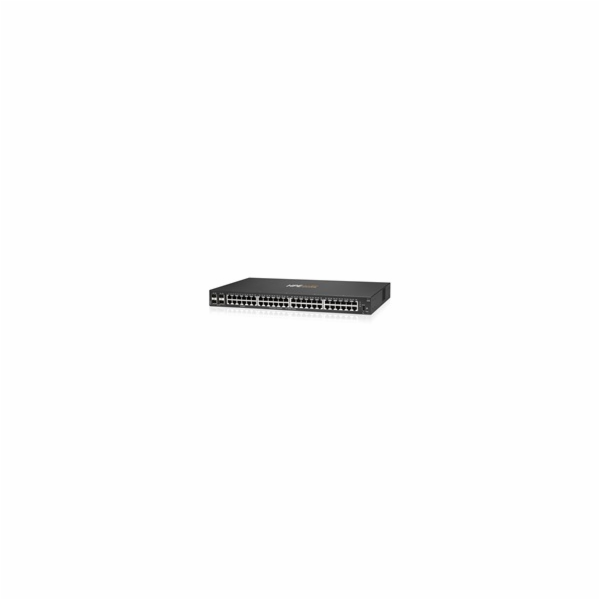

Aruba 6000 48G 4SFP Switch
(R8N86A)




Description


48x ports 10/100/1000BASE-T Ports

4x 1G/1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port




Power supplies


Fixed power supply




Fans


Fixed fans




Dimensions


(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74")




Configuration Weight


3.42 kg (7.54 lbs)




CPU


Dual Core ARM Cortex A9 @ 1016 Mhz




Memory and Flash


4 GB DDR3 16 GB eMMC




Packet Buffer


12.38MB (4.5MB Ingress/7.875MB Egress)




Model Switching Capacity


104 Gbps




Model Throughput Capacity


77.3 Mpps




Average Latency (LIFO-64- bytes packets)


1 Gbps: 1.9 µSec




Switched Virtual Interfaces (dual stack)


16




IPv4 Host Table (ARP)


1,024




IPv6 Host Table (ND)


512




IPv4 Unicast Routes


512




IPv6 Unicast Routes


512




MAC Table Capacity


8,192




IGMP Groups


512




MLD Groups


512




IPv4/IPv6/MAC ACL Entries (ingress)


256 / 128 / 256









Operating Temperature


32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)




Operating Relative Humidity


15% to 95% at 104°F (40°C) non-condensing




Non-Operating


-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)




Non-Operating Storage Relative Humidity


15% to 90% @ 149°F (65°C) non-condensing




Max Operating Altitude


10000 feet (3 km) Max




Max Non-Operating Altitude


15000 feet (4.6 km) Max




Acoustic


Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB




Primary Airflow


Side-to-side




Electrical Characteristics




Frequency


50 / 60 Hz




AC Voltage


100-127 VAC / 200-240 VAC




Current


0.8 A / 0.5 A




Power Consumption (230 VAC)


Idle: 20.6W Max Power (w/o PoE): 44.2W




Safety


UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-1:2014




Emissions


VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A
