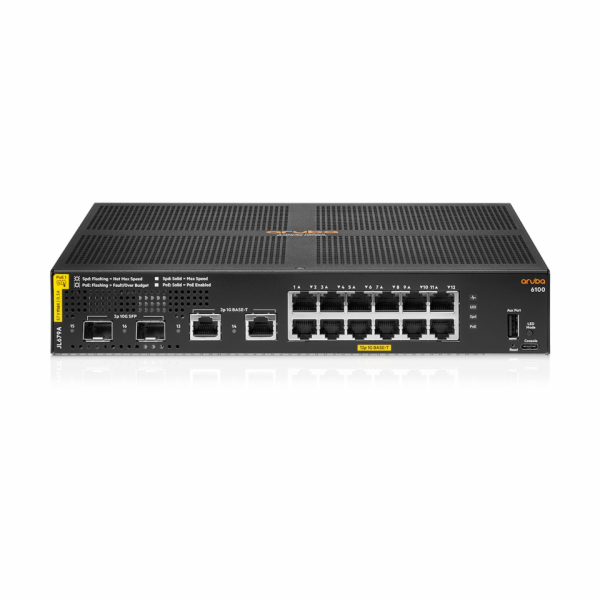

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)




Description


12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port




Power supplies


Fixed power supply (165W) Up to 139W of Class 4 PoE Power




Fans


Fanless




Physical characteristics




Dimensions


(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04")




Configuration Weight


2.78 kg (6.13 lbs)




Additional Specifications




CPU


Dual Core ARM Cortex A9 @ 1016 Mhz




Memory and Flash


4 GB DDR3 16 GB eMMC




Packet Buffer


12.38MB (4.5MB Ingress/7.875MB Egress)




Performance




Model Switching Capacity


68 Gbps




Model Throughput Capacity


45.1 Mpps




Average Latency (LIFO-64-bytes packets)


1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec




Switched Virtual Interfaces (dual stack)


16




IPv4 Host Table (ARP)


1,024




IPv6 Host Table (ND)


512




IPv4 Unicast Routes


512




IPv6 Unicast Routes


512




MAC Table Capacity


8,192




IGMP Groups


512




MLD Groups


512




IPv4/IPv6/MAC ACL Entries (ingress)


256 / 128 / 256




Environment




Operating Temperature


32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)




Operating Relative Humidity


15% to 95% at 104°F (40°C) non-condensing




Non-Operating


-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)




Non-Operating Storage Relative Humidity


15% to 90% @ 149°F (65°C) non-condensing




Max Operating Altitude


10000 feet (3 km) Max




Max Non-Operating Altitude


15000 feet (4.6 km) Max




Acoustic


Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB




Primary Airflow


-











Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)




Electrical Characteristics




Frequency


50 / 60 Hz




AC Voltage


100-127 VAC / 200-240 VAC




Current


1.8 A / 0.9 A




Power Consumption (230 VAC)


Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W




Safety





UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014




Emissions





VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A




Lasers





EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)




Immunity




Generic


CISPR 24 / CISPR 35




EN


EN 55024:2010 /
EN 55035:2017




ESD


IEC 61000-4-2




Radiated


IEC 61000-4-3




EFT/Burst


IEC 61000-4-4




Surge


IEC 61000-4-5




Conducted


IEC 61000-4-6




Power frequency magnetic field


IEC 61000-4-8




Voltage dips and interruptions


IEC 61000-4-11




Harmonics


EN 61000-3-2, IEC 61000-3-2




Flicker


EN 61000-3-3, IEC 61000-3-3




Mounting and Enclosure





Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
