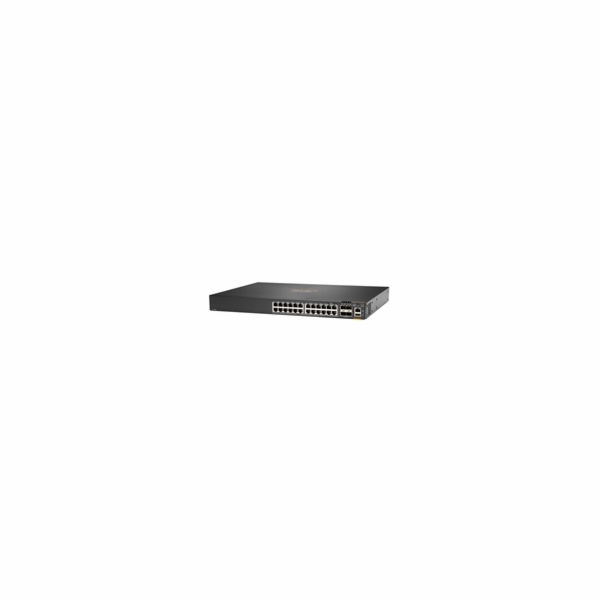

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch JL724A RENEW
HPE Aruba Networking CX 6200F 24G 4SFP+ Switch (JL724A)
Description
24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with HPE Aruba Networking CX Mobile App
Power supplies
Fixed power supply
Fans
Fixed fans
Physical characteristics
Dimensions
(H) 4.39 cm x
(W) 44.2 cm x
(D) 32.7 cm
(1.73"" x 17.4"" x 12.9"")
Weight
4.36 kg (9.61 lbs)
CPU
Quad Core ARM Cortex TM A72 @ 1.8 GHz
Memory and Flash
8 GB DDR4
16 GB eMMC
Packet buffer
8 MB packet buffer memory
Performance
Model switching capacity
128 Gbps
Model throughput capacity
Up to 95.2 Mpps
Average latency (LIFO-64-bytes packets)
1 Gbps: 2.28 µSec
10 Gbps: 1.46 µSec
Stack size
8 members
Max. stacking distance
Up to 10 kms with long range transceivers
Stacking Bandwidth
40 Gbps
Switched virtual interfaces (dual stack)
128
IPv4 host table (ARP)
8,192
IPv6 host table (ND)
8,192
IPv4 unicast routes
2,048
IPv6 unicast routes
1,024
MAC table capacity
32,768
IGMP groups
1,024
MLD groups
1,024
IPv4/IPv6/MAC ACL entries (ingress)
5,120/1280/5,120
IPv4/IPv6/MAC ACL entries (egress)
2,048/512/2,048
Environment
Operating temperature
32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1,000 ft from 5,000 to 10,000 ft
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Non-operating temperature
-40°F to 158°F (-40°C to 70°C) up to 15,000 ft
Non-operating relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Max operating altitude
Up to 10,000ft (3.048 Km)
Max non-operating altitude
15,000 feet (4.6 km) max
Acoustics
Sound power, LWAd = 4.9 Bel
Sound pressure, LpAm (bystander) = 32.5 dB
Primary airflow
Front and side-to-back
Electrical characteristics
Frequency
50Hz/60Hz
AC voltage
100-120V/200-240V
Current
2.5A/1.4A
80plus.org certification
80 PLUS Silver
Power consumption (230 VAC)
Hibernation (0 rpm fan): 7W
Idle: 49W
100% traffic rate: 59W
Safety
Europe:
EN 62368-1:2014 +A11:2017
EN 62368-1:2020 +A11:2020
USA:
UL 62368-1, 3rd Ed.,
Canada:
CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.
Worldwide:
IEC 62368-1:2014 2nd Ed.
IEC 62368-1: 2018 3rd Ed.
Taiwan: CNS-15598-1:2020
China:
GB 4943.1:2022
Emissions
Europe:
EN 55032:2015 /A11:2020, Class A
EN 61000-3-2:2019
EN 61000-3-3:2013
US:
FCC 47 CFR part 15B: 2021, Class A
Canada:
ICES-003 Issue 7: 2020, Class A
Worldwide:
VCCI-CISPR 32, Class A
CISPR 32: 2016, Class A
AS/NZS CISPR 32: 2015, Class A
CNS 15936: 2020, Class A
KS C 9832
Lasers
EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories - Optical Transceivers only)
Immunity
Generic
CISPR 35: 2016
EN
EN 55035:2017 / A11:2020
ESD
EN 61000-4-2
Radiated
EN 61000-4-3
EFT/Burst
EN 61000-4-4
Surge
EN 61000-4-5
Conducted
EN 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
EN 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
RoHS
EN 63000:2018 / IEC 63000:2018
Mounting and Enclosure
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet.
Horizontal surface mounting only.
2-post rack kit included.
