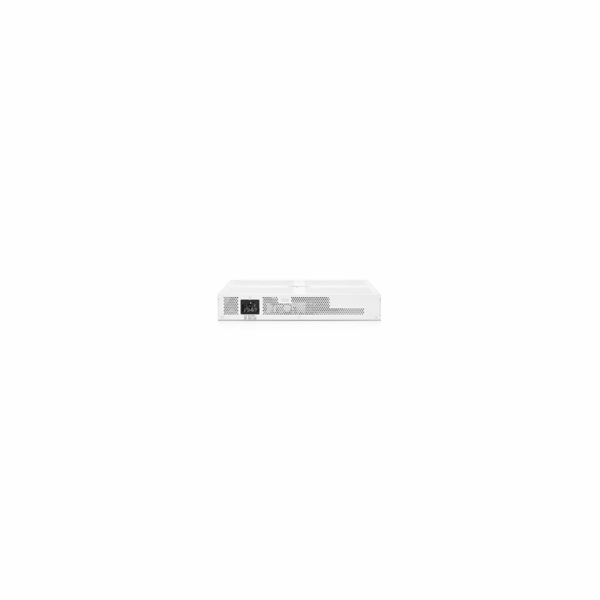

Aruba Instant On 1430 16G Switch

Aruba Instant On 1430 16G Switch




Aruba Instant On 1430 16G Switch (R8R47A)







I/O ports and slots


16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only







Physical Characteristics







Dimensions


258(d) x 275(w) x 44(h) mm







Weight


3.80 lb (01.72 kg)







Processor and Memory


128Kb EEPROM; Packet buffer size: 2.0 Mb







Performance







100 Mb latency


< 2.7 Î1Sec







1000 Mb latency


< 1.80 Î1Sec







Throughput (Mpps)


23.80 Mpps







Capacity


32 Gbps







MAC address table size


8192 entries







Reliability MTBF (years)


269.8







Environment







Operating temperature


32°F to 104°F (0°C to 40°C)







Operating relative humidity


15% to 95% @ 104°F (40°C) non-condensing







Nonoperating/ storage temperature


-40°F to 158°F (-40°C to 70°C) up to 15000 ft







Nonoperating/ storage relative humidity


15% to 90% @ 149°F (65°C) non-condensing







Altitude


up to 10,000 ft (3 km)







Acoustics


Fanless







Electrical Characteristics







Frequency


50Hz/60Hz







AC voltage


100-127VAC / 200- 240VAC







Current


0.2A/0.2A







Maximum power rating


7.9W







Idle power


2.3W







PoE power


-







Power Supply


Internal Power Supply







Safety



EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
EN/IEC 60825- 1:2014 Class 1








Emissions



EN 55032:2015/ CISPR 32, Class A
FCC CFR 47 Part 15: 2018, Class A
ICES-003, Class A
VCCI-32, Class A
CNS 13438, Class A
KS C 9832, Class A
AS/NZS CISPR 32, Class A








Immunity


BS/EN 55035, CISPR 35, KS C 9835







Generic


EN 55035, CISPR 35







EN


EN/IEC 61000-4-2







ESD


EN/IEC 61000-4-3







Radiated


EN/IEC 61000-4-4







EFT/Burst


EN/IEC 61000-4-5







Surge


EN/IEC 61000-4-6







Conducted


EN/IEC 61000-4-8







Power frequency magnetic field


EN/IEC 61000-4-11







Voltage dips and interruptions


EN/IEC 61000-3-2







Harmonics


EN /IEC 61000-3-3







Device Management


Unmanaged







Mounting







Mounting positions and supported racking



Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting using the brackets provided
Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
