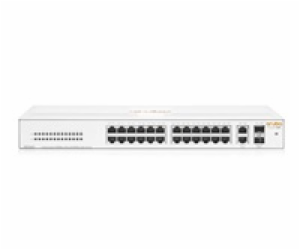

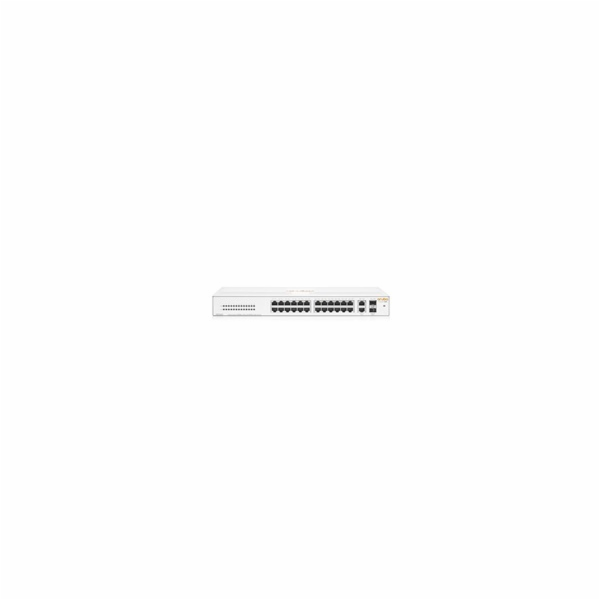

Aruba Instant On 1430 26G 2SFP Switch

Aruba Instant On 1430 26G 2SFP Switch (R8R50A)







I/O ports and slots


26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports







Physical Characteristics







Dimensions


225(d) x 388(w) x 44(h) mm







Weight


5.00 lb (2.27 kg)







Processor and Memory


32Mb Flash; Packet buffer size: 12.0 Mb







Performance










100 Mb latency


< 5.21 µSec







1000 Mb latency


> 2.90 µSec







Throughput (Mpps)


41.68 Mpps







Capacity


56 Gbps







MAC address table size


16384 entries







Reliability MTBF (years)


171.9







Environment







Operating temperature


32°F to 104°F (0°C to 40°C)







Operating relative humidity


15% to 95% @ 104°F (40°C) non-condensing







Nonoperating/ storage temperature


-40°F to 158°F (-40°C to 70°C) up to 15000 ft







Nonoperating/ storage relative humidity


15% to 90% @ 149°F (65°C) non-condensing







Altitude


up to 10,000 ft (3 km)







Acoustics


Fanless







Electrical Characteristics







Frequency


50Hz/60Hz







AC voltage


100-127VAC / 200- 240VAC







Current


0.4A / 0.3A







Maximum power rating


16.4W







Idle power


8W







PoE power


-







Power Supply


Internal Power Supply







Safety



EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
EN/IEC 60825- 1:2014 Class 1








Emissions



EN 55032:2015/ CISPR 32, Class A
FCC CFR 47 Part 15: 2018, Class A
ICES-003, Class A
VCCI-32, Class A
CNS 13438, Class A
KS C 9832, Class A
AS/NZS CISPR 32, Class A








Immunity


BS/EN 55035, CISPR 35, KS C 9835







Generic


EN 55035, CISPR 35







EN


EN/IEC 61000-4-2







ESD


EN/IEC 61000-4-3







Radiated


EN/IEC 61000-4-4







EFT/Burst


EN/IEC 61000-4-5







Surge


EN/IEC 61000-4-6







Conducted


EN/IEC 61000-4-8







Power frequency magnetic field


EN/IEC 61000-4-11







Voltage dips and interruptions


EN/IEC 61000-3-2







Harmonics


EN /IEC 61000-3-3







Device Management


Unmanaged







Mounting







Mounting positions and supported racking



Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting using the brackets provided
Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down








Transceivers



Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
