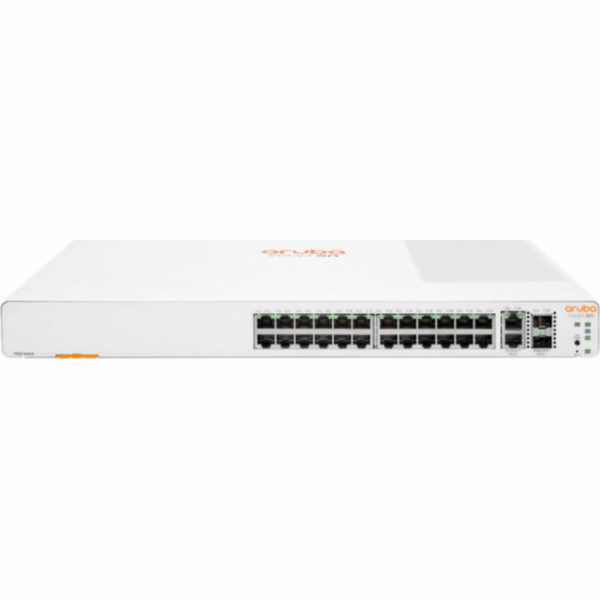

Aruba Instant On 1960 24G 2XGT 2SFP+ Switch (JL806A)

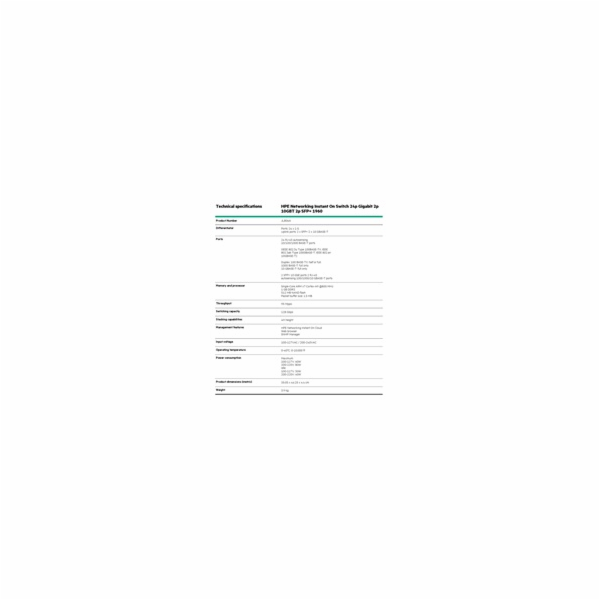

Specifications




I/O ports and slots


24 RJ-45 autosensing 10/100/1000 Mbps ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP+ 10GbE ports 2 10GBASE-T ports




Dimensions


350.5(d) x 442.5(w) x 43.95(h) mm




Weight


8.7 lb (3.9 kg)




CPU


Single-Core ARM v7 Cortex-A9 @800MHz




100 Mb Latency


< 4.4 uSec




1000 Mb Latency


< 2.2 uSec




10000 Mb Latency


< 1.1 uSec




Throughput (Mpps)


95 Mpps




Capacity


128 Gbps




Routing Table size (# of static entries)


32 IPv4/IPv6




MAC Address table size (# of entries)


16,000 entries




Reliability MTBF (years)


123.0




Operating temperature


0-40°C, 0-10,000 ft




Operating relative humidity


15% to 95% @ 104°F (40°C) non-condensing




Nonoperating/Storage temperature


-40°F to 158°F (-40°C to 70°C) up to 15000 ft




Nonoperating/Storage relative humidity


15% to 90% @ 149°F (65°C) non-condensing




Altitude


up to 10,000 ft (3 km)




Acoustics 1


Fanless




Notes 1 : 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)




Electrical Characteristics




Frequency


50Hz/60Hz




AC voltage


100-127VAC / 200-240VAC




Current


0.6A/0.2A




Maximum power rating


100-127V: 60W 200-220V: 80W




Idle power


100-127V: 30W 200-220V: 40W




PoE power


-




Power Supply


Internal power supply




Safety


EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 2




Emissions


EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A




Generic


EN 55035, CISPR 35, KN35




EN


EN 55035, CISPR 35




ESD


EN/IEC 61000-4-2




Radiated


EN/IEC 61000-4-3




EFT/Burst


EN/IEC 61000-4-4




Surge


EN/IEC 61000-4-5




Conducted


EN/IEC 61000-4-6




Power frequency magnetic field


EN/IEC 61000-4-8




Voltage dips and interruptions


EN/IEC 61000-4-11




Harmonics


EN/IEC 61000-3-2




Flicker


EN /IEC 61000-3-3




Device Management


Aruba Instant On Cloud; Web browser; SNMP Manager




Mounting Positions and Supported Racking



Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down





Transceivers



Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)










Aruba Instant On 1960 Switch Series




In today s digital-first environment, small businesses face many challenges to stay afloat and competitive. With tight budgets and limited technical expertise, they re struggling to keep up with the explosion of devices and bandwidth-heavy applications running on the network. To optimize both performance and investment, small businesses need cost-effective, next-gen networking solutions.
The Aruba Instant On 1960 Switch Series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.




The access switches each have two (2) 10GBASE-T and two (2) 10G SFP+ uplink ports for high bandwidth connectivity. The 1960 switches provide stacking capabilities: up to (four) 4 switches (access and aggregation can be mixed and matched in a stack) can be stacked together and managed through one single management IP address, simplifying network operations. This means up to 208 ports, including 16 10G uplink ports, operate as one switch. The 1960 switches support stacking through local and cloud-managed stacking modes. Local stacking provides True Stacking to easily configure, manage and troubleshoot physical switches as a single entity, while cloud-managed stacking provides ease-of-setup via the Instant On mobile app. Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1960 switch series from anywhere at any time.




Aruba Instant On 1960 Switch Series




In today s digital-first environment, small businesses face many challenges to stay afloat and competitive. With tight budgets and limited technical expertise, they re struggling to keep up with the explosion of devices and bandwidth-heavy applications running on the network. To optimize both performance and investment, small businesses need cost-effective, next-gen networking solutions.
The Aruba Instant On 1960 Switch Series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.

The Aruba Instant On 1960 Switch Series includes five switches: two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch. The access switches each have two (2) 10GBASE-T and two (2) 10G SFP+ uplink ports for high bandwidth connectivity. The 1960 aggregation switch comes with twelve (12) 10G Base-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. With PoE models, up to 30 W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60 W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones. The 24-port and 4

---
