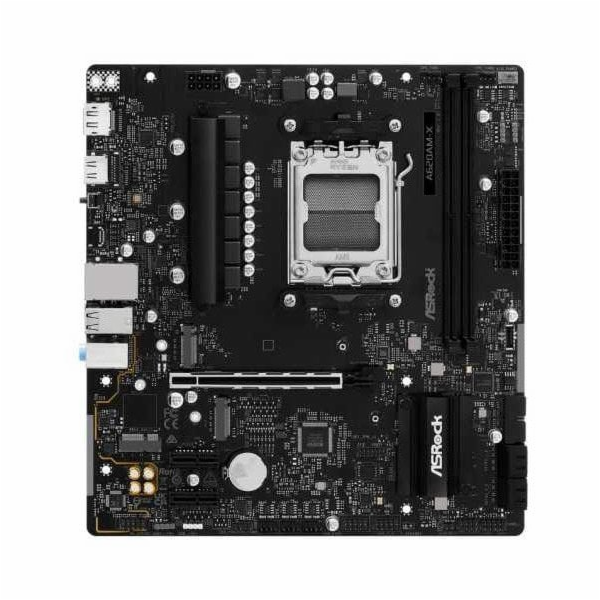

ASROCK A620AM-X X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency. Unique Feature Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *Please refer to CPU Support List on ASRock s website for more information. (http://www.asrock.com/) Chipset - AMD A620A Memory - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Expansion Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* *Please refer to Memory Support List on ASRock s website for more information. BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Expansion Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Expansion Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15µ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Internal I/O Connectorss * Supports NVMe SSD as boot disks RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 USB CPU: - 3 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection Internal I/O Connectors - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Internal I/O Connectors (4-pin)*** - 3 x Chassis/Water Pump Fan Internal I/O Connectorss (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Internal I/O Connectors - 1 x 8 pin 12V Power Internal I/O Connectors - 1 x Front Panel Audio Internal I/O Connectors - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. Back Panel I/O Ports - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Form Factor - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm OS - Microsoft Windows 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
