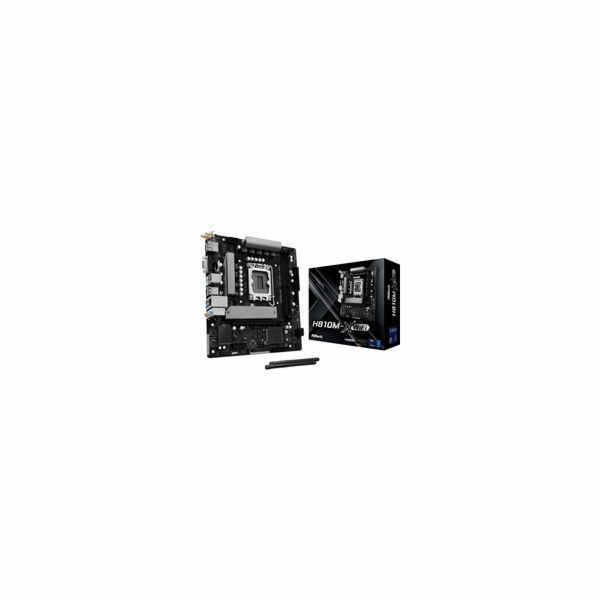

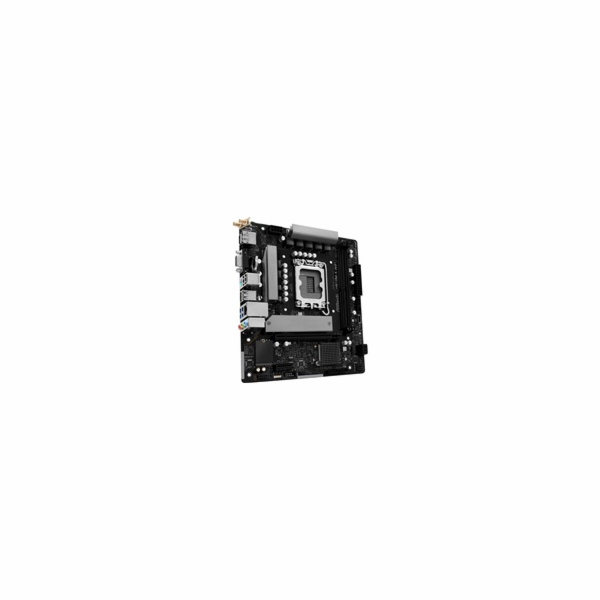

ASRock H810M-X WIFI X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency. Unique Feature Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase - ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN, 802.11ac Wi-Fi Module EZ Update - ASRock Auto Driver Installer CPU - Supports Intel Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration Chipset - Intel H810 Memory - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 3.0x* * Please refer to Memory Support List on ASRock s website for more information. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Graphics - Intel Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless LAN - 802.11ac Wi-Fi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 5.0 Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * Supports NVMe SSD as boot disks Storage Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks USB Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) * All USB ports support ESD Protection Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CHA_FAN1 supports the fan power up to 3A (36W). CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm OS - Microsoft Windows 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
