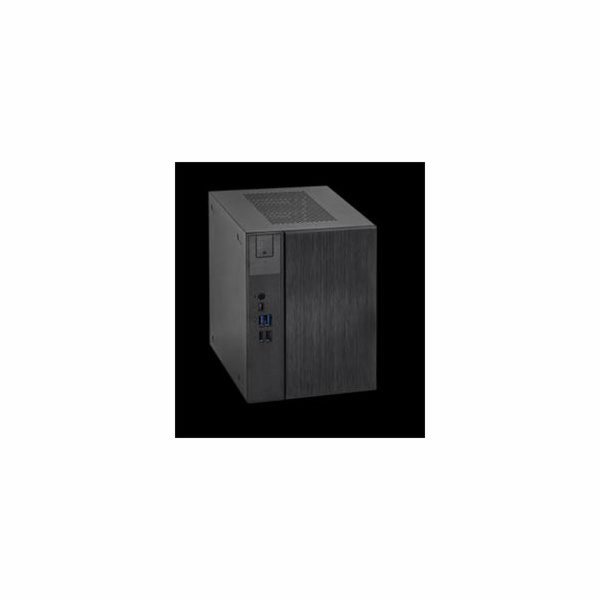

ASRock DeskMeet X300 1x AM4 APU(65W),4x DIMM DDR4, PCIe x16, M.2 + M.2E, 2x SATA,1Gb LAN, HDMI, DP, VGA, 500W

Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
Supports MAX Height ? 54mm CPU Cooler
Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
1 x PCIe 3.0 x16
Graphics Output Options:DisplayPort, HDMI & D-Sub
2 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4)
1 x USB 3.2 Gen1 Type-C Port
4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
4 x USB 2.0 Type-A port (2 Front, 2 Rear)
1 x M.2 Key-E for Wi-Fi
500W power supply (80+ Bronze)
8 Liter compact size




CPU

- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W


Cooler

- Supports AMD AM4 CPU Cooler (Max. Height ? 54mm)


Memory

- Supports Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM slots (Max. 128GB)
- AMD Ryzen 5000/4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz
- Supports ECC & non-ECC, un-buffered memory *

* For Ryzen Series APUs (Cezanne, Renoir and Picasso), ECC is only supported with PRO CPUs.



Chipset

- AMD X300


Graphics

- Supports a discrete Dual slot Graphics card up to 20CM


Audio

- Realtek ALC897 Audio Codec


Storage

- 2 x SATA3 6.0Gb/s ports (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 slot


LAN

- Gigabit LAN (RealtekRTL8111H)


Expansion Slots

- 1 x PCIe 3.0 x 16
- 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module


Front I/O

- 1 x Headphone/Headset Jack
- 1 x USB 3.2 Gen1 Type-C port
- 2 x USB 3.2 Gen1 Type-A port
- 2 x USB 2.0 Type-A port


Rear I/O

- 1 x DisplayPort
- 1 x HDMI
- 1 x D-Sub
- 2 x USB 2.0
- 2 x USB 3.2 Gen1 Type-A
- 1 x RJ-45 LAN Port
- 1 x Audio Jack (Line out)


Connectors

- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connectors (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Header
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x COM Port Header (Optional for X300-ITX/COM model)


Volume (liters)

- 8L


Power Unit

- 500W power supply (80+ Bronze, peak 550W)


Accessory

- Quick Installation Guide
- 2 x SATA Data Cables
- 1 x Screws Package


Dimension

- 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
- 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)


OS

- Microsoft ®  Windows ®  10 64-bit / 11 64-bit
