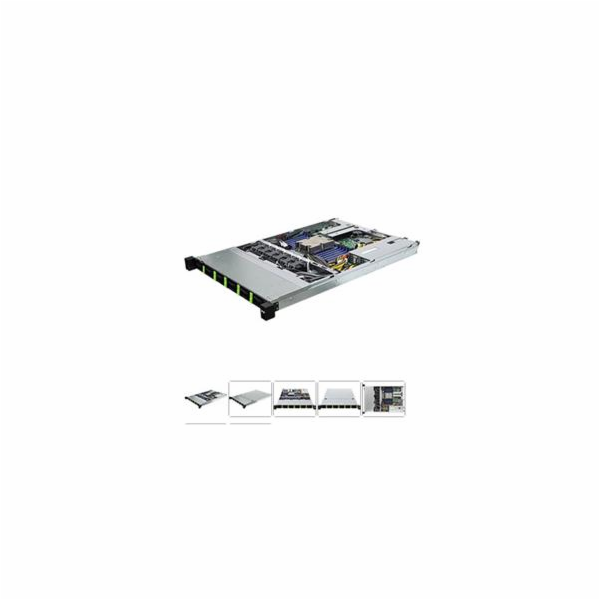

1U12E-GENOA/2L2T
1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
2 FHHL PCIe5.0 x16
Supports 2 M.2 (PCIe5.0 x4)
1 OCP NIC 3.0 (PCIe5.0 x16)
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel ® i210
Remote Management (IPMI)
System
Form Factor
1U Rackmount
Dimensions
676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB
GENOAD24QM3-2L2T/BCM
Front Panel
Buttons
Power, Reset, ID buttons
LEDs
Power, LAN 1/2, System Event, ID LEDs
I/O Ports
1 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay
12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
Front Side Backplane
12-port NVMe/SATA/SAS * passive backplanes * SAS drive is only supported with additional RAID/HBA cards
Internal Side
2 M-key (PCIe5.0 x4); support 22110/2280/2260 form factor
Power Supply
Type
1+1 Slim PSU
Output Watts
1000W
Efficiency
80-PLUS Platinum
AC Input
100-240V, 60/50Hz
System Fan
Fan
6 PWM hot-swap 40 x 56 mm fans
Processor System
CPU
Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Socket
Single Socket SP5 (LGA 6096)
Thermal Design Power
Up to 300W
Chipset
System on Chip
System Memory
Supported DIMM Quantity
24 DIMM slots (2DPC)
Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency
RDIMM: 4800 MHz (1DPC)
RDIMM 1R: 4000 MHz (2DPC)
RDIMM 2R: 3600 MHz (2DPC)
RDIMM-3DS: 4800 MHz (1DPC); 3600 MHz (2DPC)
Voltage
1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
Rear: 2 FHHL PCIe5.0 x16
Ethernet
Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel ® i210: 2 RJ45 (1GbE)
OCP slot
1 OCP NIC 3.0 (PCIe5.0 x16)
Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller
ASPEED AST2600
VRAM
DDR4 512MB
Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI
System BIOS
BIOS Type
AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Hardware Monitor
Temperature
CPU, MB, Card side, TR1 Temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
VDDCR_CPU,VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
