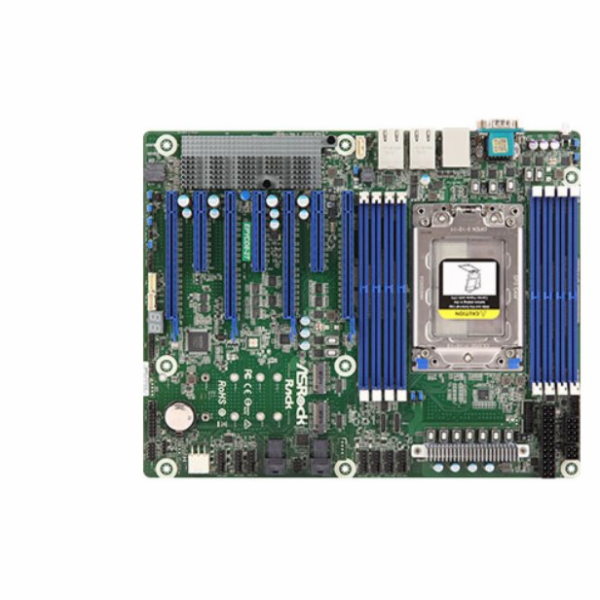

ASRock Rack EPYCD8 1x SP3, 8xDDR4 ECCreg, 9x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI

Specifications




 MB Physical Status


Form Factor
- ATX


Dimensions
- 12'' x 9.6'' (30.5 cm x 24.4 cm)


 Processor System


CPU
- AMD EPYC™ 7002/7001 series processor family


Socket
- Single Socket SP3 (LGA4094)


 System Memory


Capacity
- 8 DIMM slots


Type
- Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM


DIMM Size Per DIMM
- RDIMM: 32GB, 16GB, 8GB
- LRDIMM: 128GB, 32GB


DIMM Frequency
- RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz


Voltage
- 1.2V


 Expansion Slot


PCIe 3.0 x 16
- PCIE1: Gen3 x16 link
- PCIE3: Gen3 x16 link
- PCIE5: Gen3 x16 link
- PCIE7: Gen3 x16 link


PCIe 3.0 x 8
- PCIE2: Gen3 x8 link
- PCIE4: Gen3 x8 link
- PCIE6: Gen3 x8 link


 Storage


SATA Controller
- 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port)


OCuLink for U.2
- 2


 Ethernet


Interface
- 10000/1000 /100 /10 Mbps by Intel ® X550


LAN Controller
- 2 x RJ45 10G base-T by Intel ® X550
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI


 Management


BMC Controller
- ASPEED AST2500


IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN


Features
- Watch Dog
- NMI


 Graphics


Controller
- ASPEED AST2500


VRAM
- DDR4 128Mb


 Rear Panel I/O


VGA Port
- 1 x D-Sub


USB 3.1 Gen1 Port
- 2


Lan Port
- 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)


Serial Port
- 1 x COM port


UID Button/UID LED
- 1


 Internal Connector


SATA DOM
- 1


M.2
- 2(M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))


Front LED
- 1


Auxiliary Panel Header
- 1 (includes chassis intrusion, location button & LED, and front LAN LED)


TR1 Header
- 1


TPM Header
- 1


IPMB Header
- 1


Fan Header
- 7 Fans x 6-pin (1CPU/4Front/2Rear)


ATX Power
- 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)


USB 3.1 (Gen1) Header
- 1 (supports 2 USB 3.0 ports)


USB 2.0 Header
- 1


Speaker Header
- 1


BMC_SMB Header
- 1


Clear CMOS
- 1


PSU SMB Header
- 1


 Onboard LED


80 Debug Port LED
- 1


Fan Fail LED
- 1 (only Fan Fail LED)


 System BIOS


BIOS Type
- 32MB AMI UEFI Legal BIOS


BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash


 Hardware Monitor


Temperature
- CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing


Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control


Voltage
- Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB


 Support OS


OS
Microsoft ® Windows ®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)

Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit)
- CentOS 6.9 (64 bit) / 7. 3 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit)
- Ubuntu 16.04 (64 bit) / 17.04 (64 bit)
- CITRIX XenServer 7.5

Virtual:
- VMWare ® ESXi 6.5 u1
- vSphere 6.5 u1

* Please refer to our website for the latest OS support list.


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
