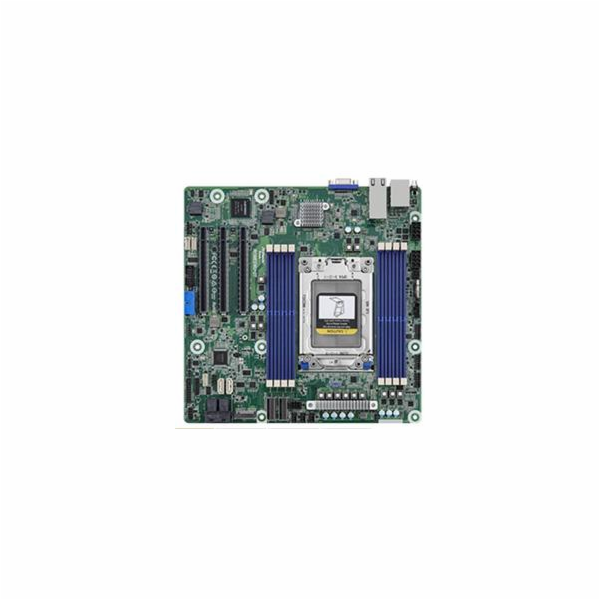

Specifications
Physical Status
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6" (244 mm x244 mm)
Processor System
CPU
Support AMD EPYC™ 7003 * and 7002 Series Processors
* A BIOS update is required to support AMD EPYC™ 7003 Series Processors.
Socket
Single Socket SP3 (LGA4094)
Chipset
System on Chip
System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Max. Capacity per DIMM
RDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
DIMM Frequency
RDIMM/ LRDIMM: max. 3200MHz
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT4: PCIe4.0 x16
Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor
SlimSAS
2 SlimSAS (PCIe4.0 x8)
SATA/SAS Storage
PCH Built-in Storage
AMD EPYC 7003/7002 (11 SATA 6Gb/s):
2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2
Ethernet
Additional GbE Controller
1 Intel ® X710-AT2: 2 RJ45 (10GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
Dedicate LAN
1 RJ45 (Dedicated IPMI)
Internal Connector/Headers
Other Power Connectors
1 (6-pin) for HDD power
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
NMI Button
1
COM Header
1
Speaker Header
1
Fan Header
6 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI), 1 (17-pin, LPC)
SGPIO Header
1
HSBP
1
SMBus header
1
PMB header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
Power Connector
2 (8-pin, ATX 12V), 1 (4-pin, ATX)
LED Indicators
Standby PWR LED 5vsb
1
Fan Fail LED
6
BMC heartbeat LED
1
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU, Memory, MB, Card side Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control"
Voltage
Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
