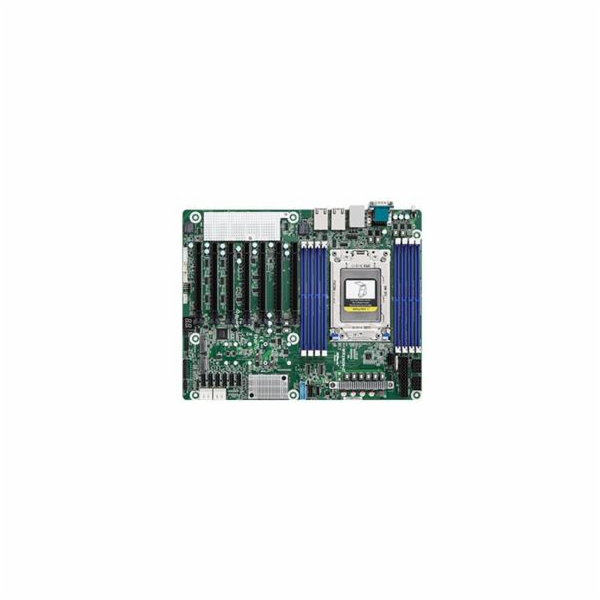

WRX80D8-2T
ATX (12" x 9.6")
Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX
8 DIMM slots (1DPC), supports ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS
7 PCIe4.0 x16
2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 2 M.2 (PCIe4.0 x4)
12 SATA 6Gb/s
2 RJ45 (10GbE) by Intel ® X710-AT2
Remote Management (IPMI)
Specifications
Physical Status
Form Factor
ATX
Dimensions
12" x 9.6" (305 mm x 244 mm)
Processor System
CPU
Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX
Socket
Single Socket sWRX8 (LGA4094)
Chipset
AMD WRX80
System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS
Max. Capacity per DIMM
ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB
RDIMM-3DS * : up to 256GB
* RDIMM-3DS Max. memory capacity is to be validated
Max. DIMM Frequency
ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS * : max. 3200MHz
* RDIMM-3DS Max. memory frequency is to be validated
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16 [CPU]
SLOT6: PCIe4.0 x16 [CPU]
SLOT5: PCIe4.0 x16 [CPU]
SLOT4: PCIe4.0 x16 [CPU]
SLOT3: PCIe4.0 x16 [CPU]
SLOT2: PCIe4.0 x16 [CPU]
SLOT1: PCIe4.0 x16 [CPU]
Other PCIe Expansion Connectors
M.2 slot
2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH]
OCuLink
2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [FCH]
SATA/SAS Storage
PCH Built-in Storage
AMD WRX80 (12 SATA 6Gb/s):
2 OCuLink, 4 SATA 7-pin
Ethernet
Additional GbE Controller
Intel ® X710-AT2: 2 RJ45 (10GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 512MB
Rear I/O
UID Button/LED
1
VGA Port
1 DB15
Serial Port
1 DB9
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
1 dedicated IPMI
Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED
Speaker Header
1 (4-pin)
Fan Header
7 (6-pin)
Thermal Sensor Header
2
TPM Header
1 (13-pin, SPI), 1 (17-pin, LPC)
HSBP
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) Header
1 (Type-C, 1 USB3.2 Gen2)
NMI Header
1
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1
System BIOS
BIOS Type
AMI 256 Mb SPI Flash ROM
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU, DRAM, MB, Card Side, Chipset Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
