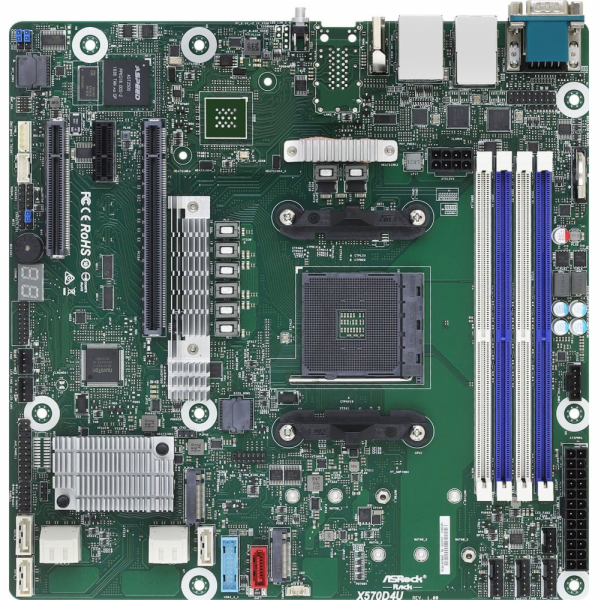

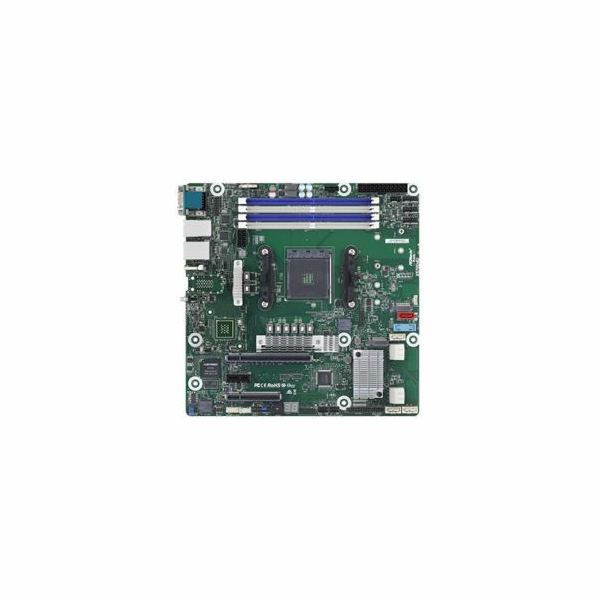

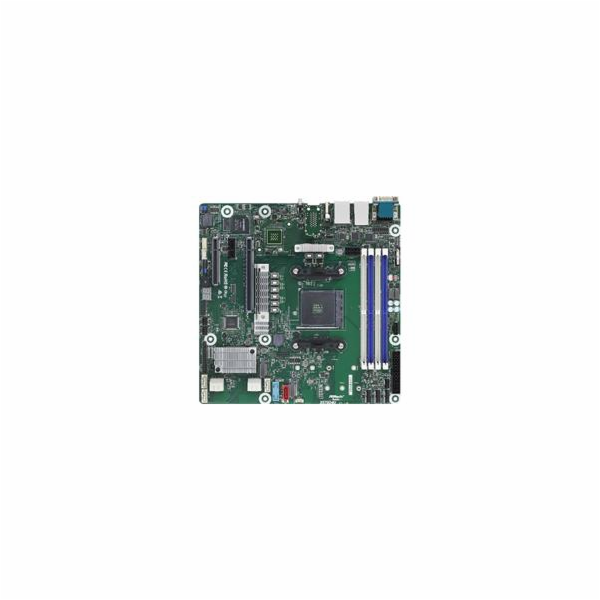

Specifications
Physical Status
Form Factor
micro-ATX
Dimensions
9.6"x9.6" (244mmx 244mm)
Processor System
CPU
supports:
AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen™ Desktop Processors
2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC * and non-ECC UDIMM
* ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 3 rd Gen AMD Ryzen™ Processors :
up to 3200 MHz
2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics:
up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe x 16
- SLOT6: PCIe x16 (PCIe 4.0 x16) * [CPU], auto switch to x8 when SLOT4 is occupied
* Supports PCIe3.0 x8 when using 2 nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
PCIe x 8
- SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) * [CPU]
* Disabled when using 2 nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
PCIe x 1
- SLOT5: PCIe 4.0 x1 * * Supports PCIe3.0 when using 2 nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
M.2
1 M-key (PCIe4.0 * x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0 * x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]
* Supports PCIe3.0 when using 2 nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (1GbE) by Intel ® i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 2 nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics:
1 HDMI
Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.2 Gen2 Port
2
Lan Port
2 RJ45(1GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
