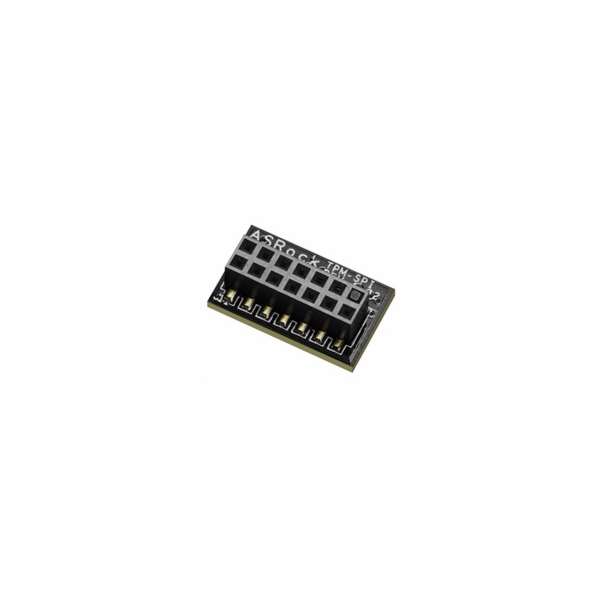

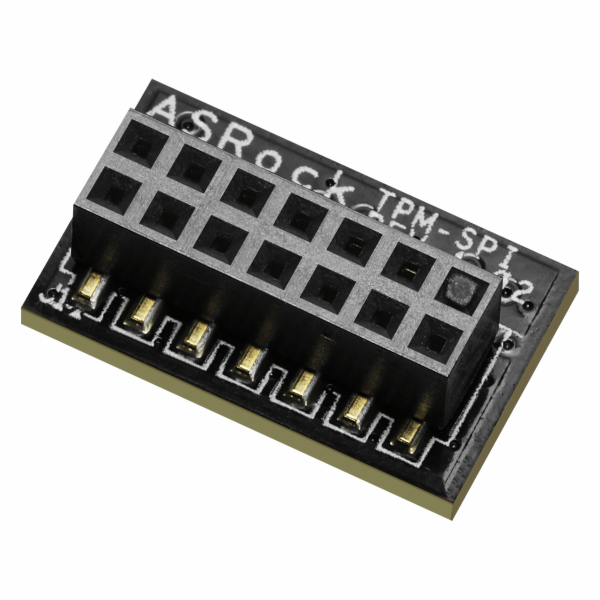

ASRock TPM-SPI

TPM-SPI

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16

Features Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16 - SPI interface - Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification - Random Number Generator (RNG) according to NIST SP800-90A - Full personalization with Endorsement Key (EK) and EK certificate - Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C) - PG-VQFN-32-13 or PG-UQFN-32-1 package - Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version - Optimized for battery operated devices: low standby power consumption (typ. 110µA) - 24 PCRs (SHA-1 or SHA-256) - 7206 Byte free NV memory - Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN) - Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX) - Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN) - Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN) - Up to 8 NV counters - Up to 1 kByte for command parameters and response parameters - 1280 Byte I/O buffer *Supported on X570 and newer platform motherboards.
System Requirements - Windows 10, UEFI OS
Dimensions - 16.51mm x 10.16mm
Pin Dimension - 14-1pin
