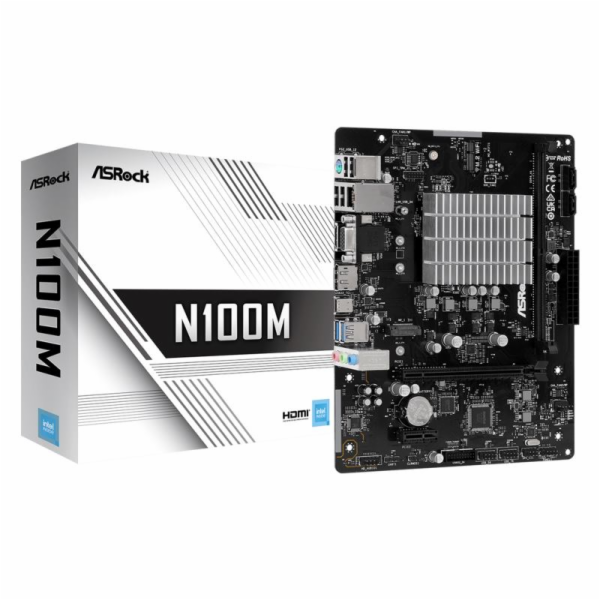

ASRock MB Alder Lake-N N100M, Intel N100, 1xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

ASRock N100M Intel Quad-Core Processor N100 (up to 3.4 GHz) Supports 1 DDR4 DIMM 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: D-Sub, HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec 2 SATA3, 1 M.2 (PCIe Gen3x2) 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front) Realtek Gigabit LAN Supports ASRock Auto Driver Installer The newest Intel N100 processor, built on the Gracemont CPU microarchitecture using the Intel 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing. CPU - Intel Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel Turbo Boost Technology Memory - 1 x DDR4 DIMM Slot - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 32GB Graphics - Integrated Intel UHD Graphics: 24 EUs inside (Up to 750MHz) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H Slots - 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode - 1 x PCIe 3.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 Intel CNVio (Integrated WiFi/BT) Storage - 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors USB - 1 x USB 3.2 Gen2 Type-C (Rear) - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) Internal Connector - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash Accessories - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets Form Factor - Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm - Solid Capacitor design OS - Microsoft Windows 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) BIOS - 128Mb AMI UEFI Legal BIOS with GUI support Unique Feature Rock-Solid Durability - 2+1+1 Power Phase EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
