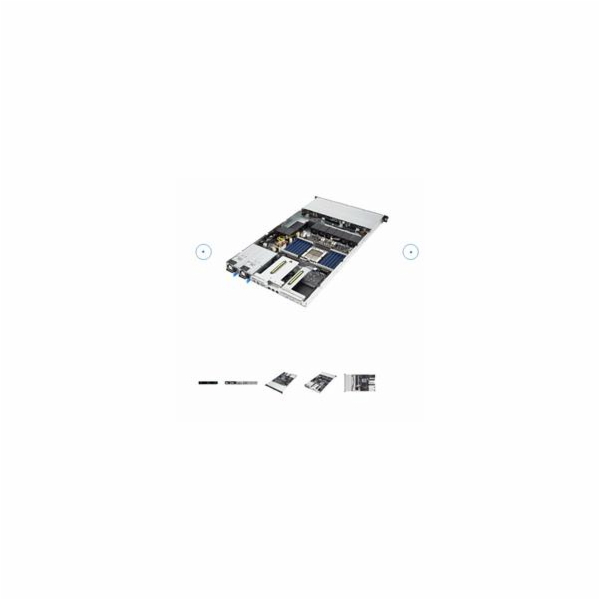

ASUS 1U RS501A-E12-RS4 1 xSP5 (LGA 6096) 24xDDR5 4xSATA/SAS/OCP/2x1G LAN/1,6KW

Processor / System Bus


1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)



Memory


24 x DIMM slots
DDR5 5600 RDIMM/ 3DS RDIMM
Maximum 2,304GB

with AMD EPYC™ 9005 series processors
2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400,
2DPC (2 of 2, 2R+2R ) up to 4000

with AMD EPYC™ 9004 series processors
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600

* Refer to support page for more information



Expansion Slots


Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)



Storage


Storage Controller  :
CPU Integrated
Optional kits Controller  :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card



Drive Bays


Front bays:
4 x 2.5” Hot-swap Storage Bays
4 x SATA/SAS

*SAS support only from optional SAS
HBA/RAID card

2 x M.2 connectors



Networking


1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port



Graphic


Up to 2 single-slot GPU cards



Multi-GPU Support


Please find the latest GPU support from  https://servers.asus.com/support/GPU



Front I/O Ports


2 x USB 3.2 Gen1 ports
1 x VGA port



Rear I/O Ports


2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports



Switch/LED


Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear :
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED



OS Support


Please find the latest OS support from  https://servers.asus.com/support/os



Management Solution


ASUS Control Center
ASUS ASMB11-iKVM (on-board)



Regulatory Compliance


BSMI, CB, CE, RCM, FCC(Class A)



Dimensions


842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"



Form Factor


1U



Weight


(approximate)
Net Weight: 13.15 kg
Gross Weight: 18.15 kg



Power Supply


1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W 80 PLUS Platinum
Power Supply



Environment


Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)

Note
Operating Temperature based on configurations



Optional Items


Rail Kit:
Tool-less Friction Rail Kit
1.2m Half Extension Ball bearing Type Rail Kit
1m Half Extension Ball bearing Type Rail Kit
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if  cable arm needed.
1U Front Bezel
