ASUS TUF Gaming GT501 Black

TUF Gaming GT501

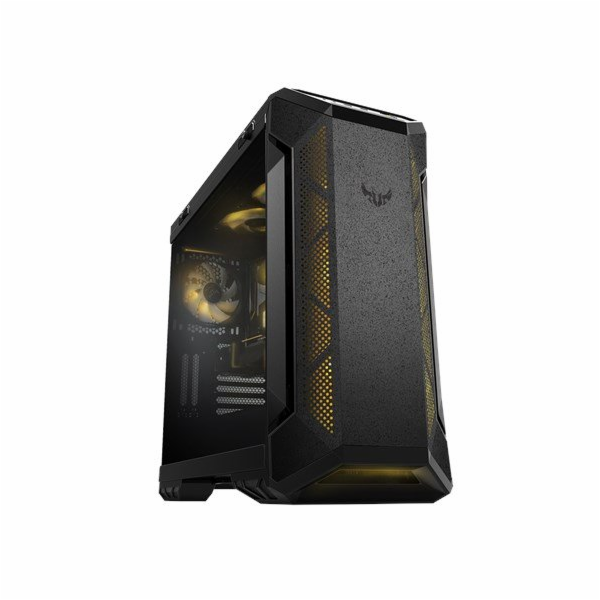

ASUS TUF Gaming GT501 case supports up to EATX with metal front panel, tempered-glass side panel, 120 mm RGB fan, 140 mm PWM fan, radiator space reserved, and USB 3.1 Gen 1

Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.
Mobile battle station: Ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.
Efficient cooling: Equipped with three 120mm Aura Sync RGB-illuminated fans and one 140mm rear PWM fan, plus up to seven fan-mounting points for targeted airflow.
Space reserved for both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
Perfect for TUF Gaming motherboards: Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.

Case Size
Mid Tower
Motherboard Support
EATX (12"x10.9") ATX Micro-ATX Mini-ITX
Drive Bays
3 x 2.5" Bay 4 x 2.5"/3.5" Combo Bay
Expansion Slots
7 2 (additional vertical)
Front I/O Port
1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1
Tempered Glass
Left Side
Radiator Support (Front)
120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Top)
120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Rear)
120 mm 140 mm
Cooling Support (Front)
3 x 120 mm 2 x 140 mm
Cooling Support (Top)
3 x 120 mm 2 x 140 mm
Cooling Support (Rear)
1 x 120 mm 1 x 140 mm
Pre-installed Fans (Front)
3 x 120 mm RGB
Pre-installed Fans (Rear)
1 x 140 mm PWM
Maximum CPU Cooler Height
180mm
Maximum GPU Length
420mm
Maximum PSU Length
240mm
Removable Dust Filters
Front Top Bottom
Maximum Cable Management Space
30 mm
Dimensions
552 x 251 x 545 mm
Weight
10.5Kg
