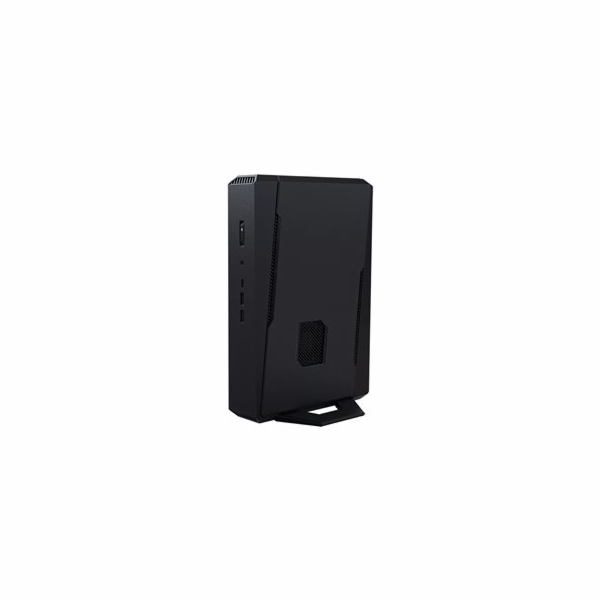

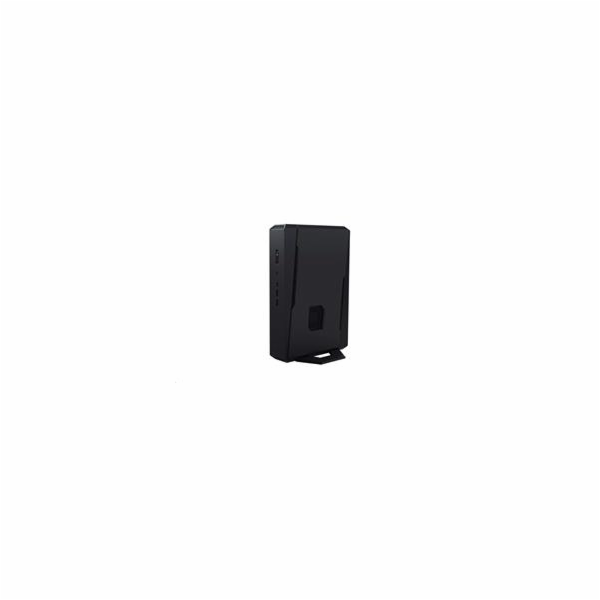

ASUS NUC 15 Performance RNUC15JNK9X40002/Core Ultra 9-275HX/DDR5/USB 8x/LAN/WiFi/NVIDIA GeForce RTX 5070/M.2/Tall/L6 Kit

ASUS NUC 15 Performance - Model with NVIDIA® GeForce RTX™ 5070 Laptop GPU

Model Name: NUC15JNLU9X6
Project Code: NUC15JNK-B
Technical Specifications
Processor: Intel® CoreTMUltra 9 275HX, configurable TDP 45-65W
Chipset: Intel® HM870
Graphics: Integrated: Intel® Graphics
Discrete: NVIDIA® GeforceRTXTM5070 GPU Laptop GPU

Memory:
2× SO-DIMM DDR5 up to 6400 MHz
Maximum capacity: 48 GB (2× 24 GB)

Storage:
1× M.2 2280 PCIe Gen4x4 NVMe SSD (128 GB - 4 TB)
1× M.2 2280 PCIe Gen5x4 NVMe SSD (128 GB - 4 TB)
Networking:
Wifi: Intel® Killer™ Wi-Fi 7 BE1750x (Gig+), Bluetooth® 5.4
Lan: Intel® Ethernet Controller E3100G (2.5Gb LAN)
Audio: Realtek ALC3251
Security: fTPM 2.0

I/O Ports
Front I/O:
2× USB 3.2 Gen 2 Type-A
1× USB 3.2 Gen 2 Type-C
1× 3.5 mm Combo Audio Jack
Rear I/O:
1× Thunderbolt™ 4 / USB4 Type-C with DisplayPort™ 2.1
2× HDMI 2.1 FRL ports
2× DisplayPort™ 2.1
4× USB 3.2 Gen 2 Type-A
1× RJ-45 LAN port
1× DC-in
1× Kensington Lock slot
Power:330 W Power Adapter (19.5VDC, 16.9A)

OS Support
Microsoft Windows 11 Home 64-bit
Microsoft Windows 11 Pro 64-bit
Microsoft Windows 11 Pro Education 64-bit
Microsoft Windows 11 IoT Enterprise 64-bit
Ubuntu 24.04LTS 64-bit
RedHat Enterprise Linux 64-bit
*No OS installed at shipment

Operating Temperature: 0-35°C
Storage Temperature: -40 to 60°C
Humidity: 0-85% non-condensing
Orientation: Vertical only (with integrated base)

Dimensions & Weight
Dimensions: 282.4 × 187.7 × 56.5 mm (bottom: 146 mm)
Weight: 3.12 kg


Accessories
AC Adapter + Regional Power Cord
Safety Information
Regulatory Insert
Warranty Card
