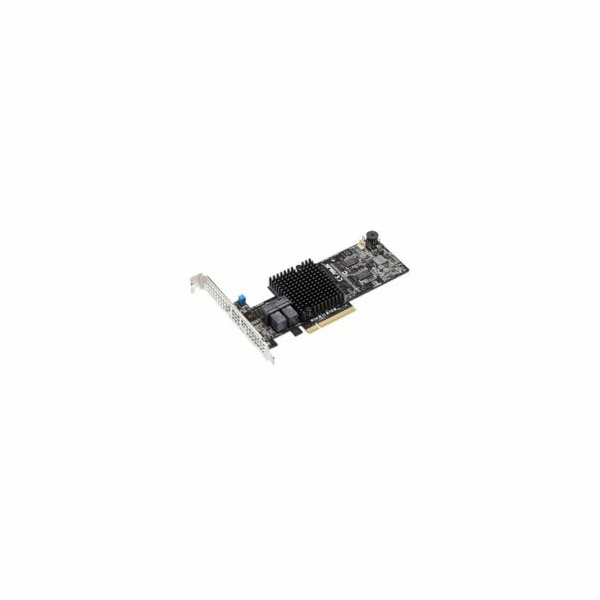

ASUS PIKE II 3108-8i-240PD/1G 8-port internal SAS 12G, H/W RAID 0, 1, 10, 5, 6, 50, 60

Chipset

LSI SAS 3108


Interface

PCI-E Gen 3


Ports

8 Ports *1


RAID levels

RAID 0/RAID 1/RAID 10/RAID 5/RAID 6/RAID 50/RAID 60


Devices Supported

SATA :
SATA 3Gb/s, SATA 6Gb/s
SAS :
SAS 3Gb/s, SAS 6Gb/s, SAS 12Gb/s


Data Rate

SAS 12Gb/s


Cache

1GB on board SDRAM


Cache Protection

Header reserved for LSI CacheVault (acquired from LSI existing distribution channel)


Form Factor

6.6 " x 2.71 " Inch


Package Content

1 x Full-height Bracket (Default)
1 x Low-profile Bracket
1 x Support DVD (per carton)


Note

*1 8 SAS 12Gb/s Ports(2 Mini-SAS HD SFF-8643)
*2 Max. physical Disk qty for RAID: 240

CacheVault support:

Support CacheVault Flash Cache Protection Module
Avago Cache Protection Option: LSICVM02
Avago Ordering Part Number: LSI00418
http://www.avagotech.com/products/server-storage/raid-controllers/cache-protection#overview

CacheCade Software support:

Support Physical Key for MegaRAID CacheCade Pro 2.0 Software
Avago Physical Key Ordering Part Number: LSI00290
http://www.avagotech.com/products/server-storage/raid-controllers/megaraid-cachecade-pro-software#overview
