Popis produktu

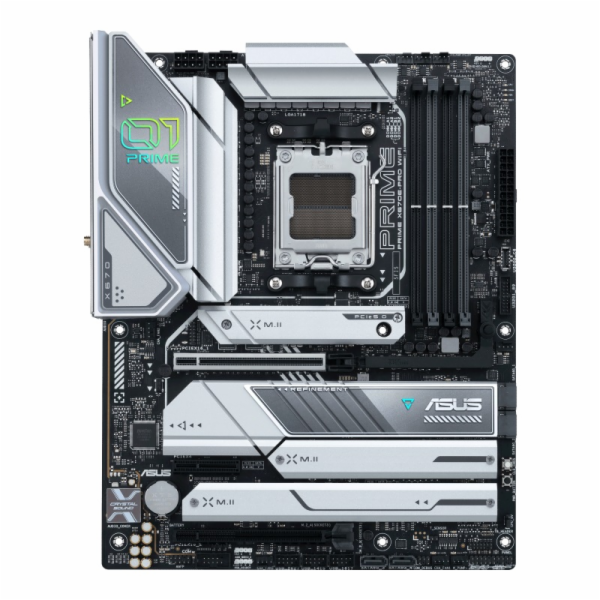

PRIME X670E-PRO WIFI



CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*


* Refer to www.asus.com for CPU support list.


Chipset
AMD X670 Chipset


Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports AMD EXTended Profiles for Overclocking (EXPO™)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**


1 x HDMI port***


* Graphics specifications may vary between CPU types.


** Supports max. 8K@60Hz as specified in DisplayPort 1.4.


*** Supports 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors


1 x PCIe 5.0 x16 slot(s)*


AMD X670 Chipset


1 x PCIe 4.0 x16 slot (supports x4 mode)


1 x PCIe 4.0 x4 slots


* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).


Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*


AMD Ryzen™ 7000 Series Desktop Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


AMD X670 Chipset


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports


*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.


** M.2_2 slot shares bandwidth with SATA_1&2. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled.


Ethernet
1 x Realtek 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries.


USB
Rear USB (Total 10 ports)


1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C )


4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C )


5 x USB 3.2 Gen 1 port(s) (4 x Type-A + 1 x USB Type-C )


Front USB (Total 9 ports)


1 x USB 3.2 Gen 2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


3 x USB 2.0 headers support additional 6 USB 2.0 ports


Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*


Audio Features


- Power pre-regulator reduces power input noise to ensure consistent performance


- Premium audio capacitors


- Dedicated audio PCB layers


- Audio cover


- Unique de-pop circuit


* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)


4 x USB 3.2 Gen 2 port(s) (3 x Type-A, 1 x USB Type-C)


5 x USB 3.2 Gen 1 port(s) (4 x Type-A, 1 x USB Type-C)


1 x DisplayPort


1 x HDMI port


1 x Wi-Fi Module


1 x Realtek 2.5Gb Ethernet port


5 x Audio jacks


1 x BIOS FlashBack™ button


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


4 x 4-pin Chassis Fan headers


1 x W_PUMP+ header


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connectors


Storage related


4 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


3 x USB 2.0 headers support additional 6 USB 2.0 ports


Miscellaneous


2 x Addressable Gen 2 headers


1 x AURA RGB header


1 x Clear CMOS button


1 x COM Port header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x Power button


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt™ header


Special Features
ASUS 5X PROTECTION III


- DIGI+ VRM (- Digital power design with DrMOS)


- ESD Guards


- LANGuard


- Overvoltage Protection


- Safeslot


- Stainless-Steel Back I/O


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- Clear CMOS button


- ProCool


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header


- Addressable Gen 2 headers


Software Features
ASUS Exclusive Software


Armoury Crate


- AURA Sync


- Fan Xpert 4 (with AI Cooling II)


- Power Saving


- Two-Way AI Noise Cancelation


AI Suite 3


- Easy Optimization


- DIGI+ VRM


- Turbo app


- PC Cleaner


ASUS CPU-Z


DTS:X Ultra


MyAsus


Norton Anti-virus software (Free Trial version)


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


FlexKey


MemTest86


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Miscellaneous


1 x ASUS Wi-Fi moving antenna


2 x Rubber Packages for M.2


2 x Screw packages for M.2 SSD


1 x Q-connector


Installation Media


1 x Support DVD


Documentation


1 x User guide


Operating System
Windows 11 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

---
