Popis produktu

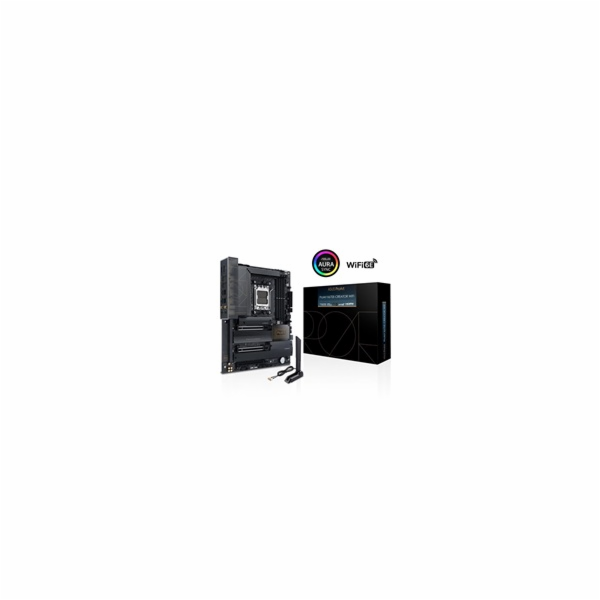

ProArt X670E-CREATOR WIFI



CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*


* Refer to www.asus.com for CPU support list.


Chipset
AMD X670


Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports AMD EXTended Profiles for Overclocking (EXPO™)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.


Graphics
1 x HDMI port**


2 x USB4 ports support USB Type-C display outputs***


* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


** Supports 4K@60Hz as specified in HDMI 2.1.


*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.


**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors or graphic cards resolution.


Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*


2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)


AMD X670 Chipset


1 x PCIe 4.0 x16 slot (supports x2 mode)**


* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).


** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.


Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*


AMD Ryzen™ 7000 Series Desktop Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


AMD X670 Chipset


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**


M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports


*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.


** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.


Ethernet
1 x Marvell AQtion 10Gb Ethernet


1 x Intel 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries.


USB
Rear USB (Total 11 ports)


2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-C )


7 x USB 3.2 Gen 2 ports (7 x Type-A)


1 x USB 2.0 port (1 x Type-A)


Front USB (Total 9 ports)


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


3 x USB 2.0 headers support additional 6 USB 2.0 ports


Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*


Audio Features


- Power pre-regulator reduces power input noise to ensure consistent performance


- Premium audio capacitors


- Dedicated audio PCB layers


- Audio cover


- Unique de-pop circuit


* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.


** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


Back Panel I/O Ports
2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)


7 x USB 3.2 Gen 2 ports (7 x Type-A)


1 x USB 2.0 port (1 x Type-A)


1 x DisplayPort (Input only)


1 x HDMI port


1 x Wi-Fi Module


1 x Marvell AQtion 10Gb Ethernet


1 x Intel 2.5Gb Ethernet


3 x Audio jacks


1 x BIOS FlashBack™ button


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connectors


1 x 6-pin PCIe Power connector


Storage related


4 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


3 x USB 2.0 headers support additional 6 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x Aura RGB header


1 x Clear CMOS header


1 x COM Port header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


Special Features
ASUS 5X PROTECTION III


- DIGI+ VRM (- Digital power design)


- Enhanced DRAM Overcurrent Protection


- ESD Guards


- LANGuard


- Overvoltage Protection


- Safeslot


- Stainless-Steel Back I/O


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsinks


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- ProCool


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- Aura RGB header


- Addressable Gen 2 headers


Bespoke Motherboard Design & Business Focused Features


- 24/7 Reliability


- Overcurrent Protection


Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support


- Support: up to 60W charging*


- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A


- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS


* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W


Software Features
ASUS Exclusive Software


Armoury Crate


- Aura Creator


- Aura Sync


- Fan Xpert 4 with AI Cooling II


- Power Saving


- Two-Way AI Noise Cancellation


AI Suite 3


TPU


DIGI+ VRM


Turbo app


ASUS CPU-Z


IT Management software supported


- ASUS Control Center Express(ACCE)


CreationFirst


MyAsus


Norton Anti-virus software (Free Trial version)


ProArt Creator Hub


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


FlexKey


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


1 x DisplayPort cable


4 x SATA 6Gb/s cables


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Q-connector


1 x M.2 Q-Latch package for M.2 backplate


2 x Rubber Packages for M.2


1 x Rubber Package for M.2 backplate


1 x Screw packages for M.2 SSD


1 x ProArt ruler


Documentation


1 x ACC Express Activation Key Card


1 x User guide


Operating System
Windows 11 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

---
