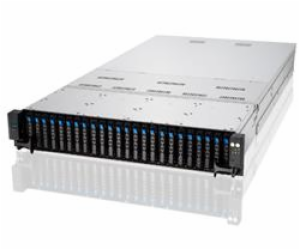

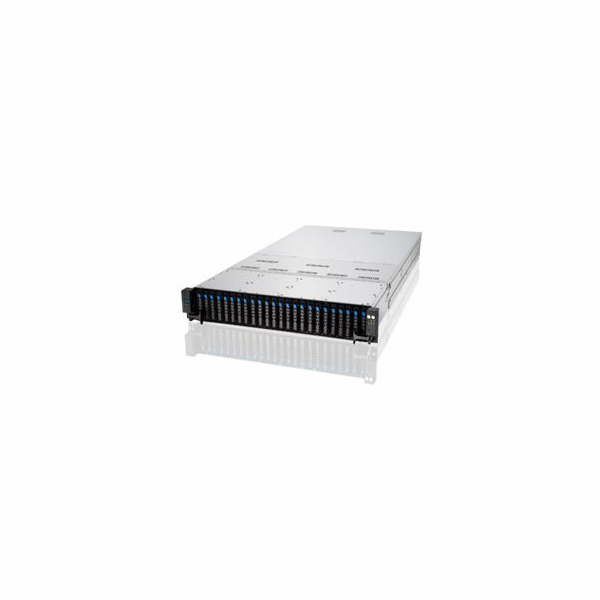

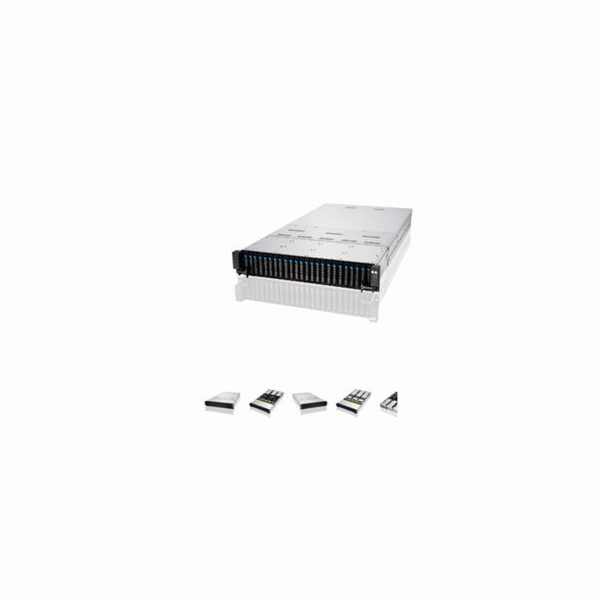

ASUS RS720A 2U Server 2XSP3,24x DDR4 ECC. 24xNVME

Processor / System Bus


2 x Socket SP3 (LGA 4094)
AMD EPYC™ 7003 Series
AMD EPYC™ 7002 Series
Max TDP : 280W



Generation


E11



Memory


Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU) Option 1
Capacity :
Maximum up to 4096GB per socket
Memory Type :
Dual Channel DDR4 3200/2933 RDIMM
Dual Channel 3200/2933 LRDIMM
Dual Channel 3200/2933 LR-DIMM 3DS non ECC
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB LRDIMM
256GB, 128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information



Expansion Slots


Up to 9 x Expansion slots
2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)
1 x PCIe Gen4 x8, FHFL (CPU1 x1)
1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)
4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)
*Installing GPU cards will occupied expansion slots.



Storage


Storage Controller :
8 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Broadcom MegaRAID 9560-16i (Optional)



Drive Bays


Support 24 NVMe SKU:
24 x 2.5" hot-swap drive bays (16xNVMe + 8NVMe/SATA/SAS*)
2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
Support 12 NVMe SKU:
24 x 2.5" hot-swap drive bays (12xNVMe + 8SATA/SAS*)
2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
2 x 2.5" hot-swap drive bays (2x SATA/NVMe)(optional rear bays)
*must with PIKE/RAID card



System Fan


4



Networking


Option 1
1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
or
Option 2
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
or
None x + 1 x Mgmt LAN



Graphic


Aspeed AST2600 with 64MB VRAM



Multi-GPU Support


Please find the latest GPU support from  https://servers.asus.com/support/gpu



Front I/O Ports


2 x USB 3.2 Gen1 ports



Rear I/O Ports


2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
1 x OCP3.0 port (Please remember to insert OCP3.0 Board)



Switch/LED


Front Switch/LED:
1 x Power switch (w/LED)
1 x Reset Switch
1 x Location Switch (w/LED)
1 x HDD Access LED
1 x Message LED LAN 1-4 LED (on NIC Module)
Rear Switch/LED:
1 x Power switch w/LED
1 x Port 80 LED(Q-Code)
1 x Location Switch w/LED
1 x Message LED



OS Support


Please find the latest OS support from  https://servers.asus.com/support/os



Management Solution


On-Board ASMB10-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)



Regulatory Compliance


BSMI, CE, FCC(Class A)



Dimensions


840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")



Form Factor


2U



Weight


Net Weight : 21.64KG
Gross Weight : 27.85KG



Power Supply


1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating:
100-127/200-240Vac,13A/9.5A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
200-240Vac,10A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China;100-127Vac, 12A only for NA)
1+1 Redundant 2400W 80 PLUS Titanium Power Supply
*2400W RPSU is required while choosing GPU SKU



Environment


Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)



Optional Items


Standard Cooling Solution or
Water Cooling Solution



Note


*If only 1 CPU is installed, some functions might be not available.
*SAS support only from SAS HBA/RAID Card
*If PCIe expansion slot 3 choosing OCP3.0 option, slot 4 will be limited to support PIKE card only



CPU Heatsink/ Cooler


2



Fan


1 (For supporting GPU SKU, it will have external fan)
