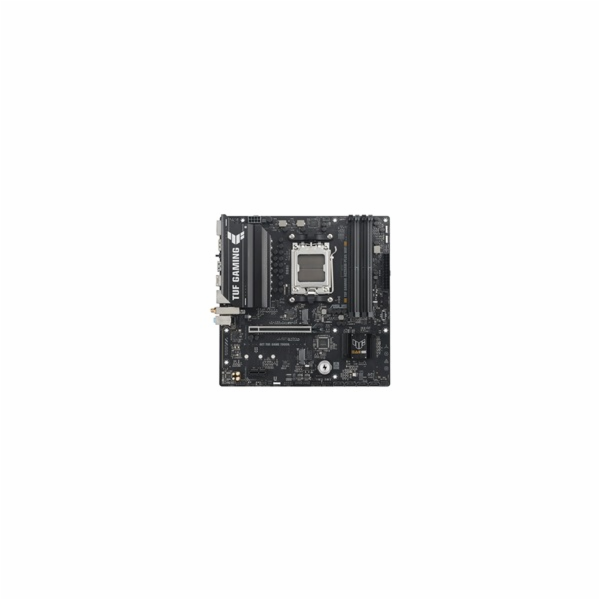

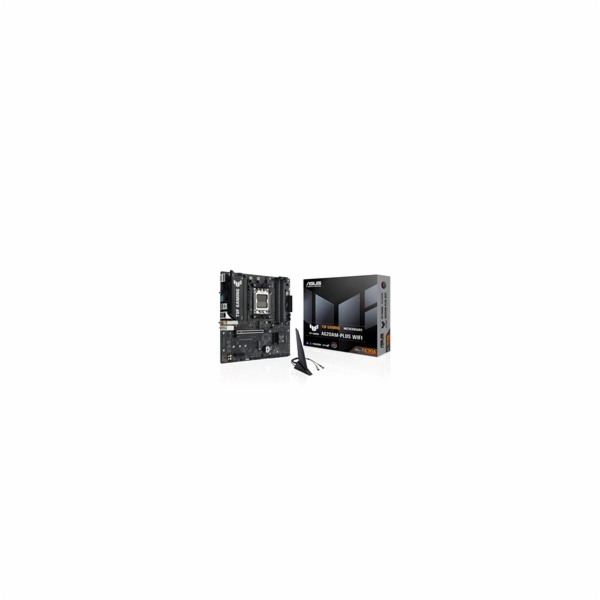

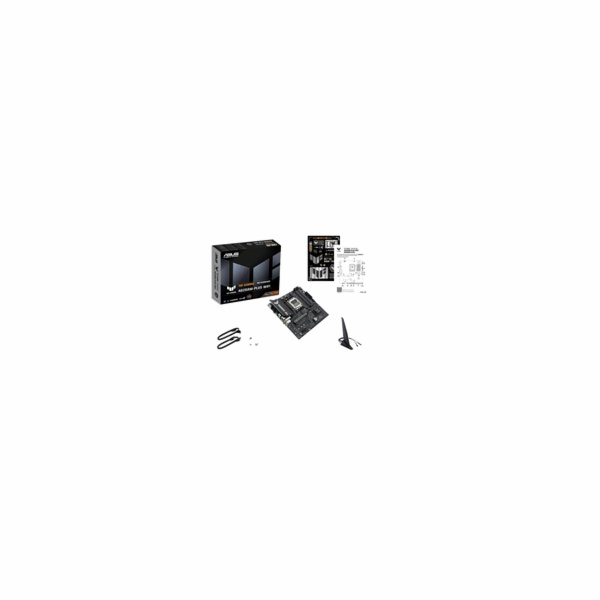

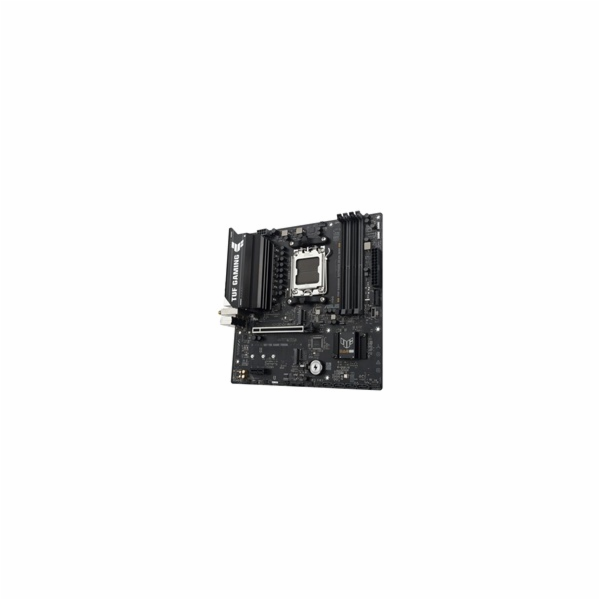

ASUS TUF GAMING A620AM-PLUS WIFI

ASUS TUF GAMING A620AM-PLUS WIFI ASUS TUF GAMING A620AM-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand. CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD A620A Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC Un-buffered DIMM Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Graphics 2 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD A620A Chipset 1 x PCIe 3.0 x1 slot Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. To ensure compatibility of the device installed, refer to https://www.asus.com/support/download-center/ for supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD A620A Chipset 4 x SATA 6Gb/s ports Specifications vary by CPU types. RAID Support AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer s website for the latest specifications. USB Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A Audio Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 keyboard/mouse combo port Internal I/O Connectors Fan and Cooling Related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin Front Panel System header Special Features ASUS TUF PROTECTION DIGI+ VRM ESD Guards TUF LANGuard Overvoltage protection SafeSlot Core+ Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Aura Sync Addressable RGB Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ ASUS DriverHub TUF GAMING CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode For more software features, visit www.asus.com/support for additional information. BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 2 x Screw packages for M.2 SSD 1 x TUF GAMING sticker Documentation: 1 x Quick start guide Operating System Windows 11, Windows 10 64-bit Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
