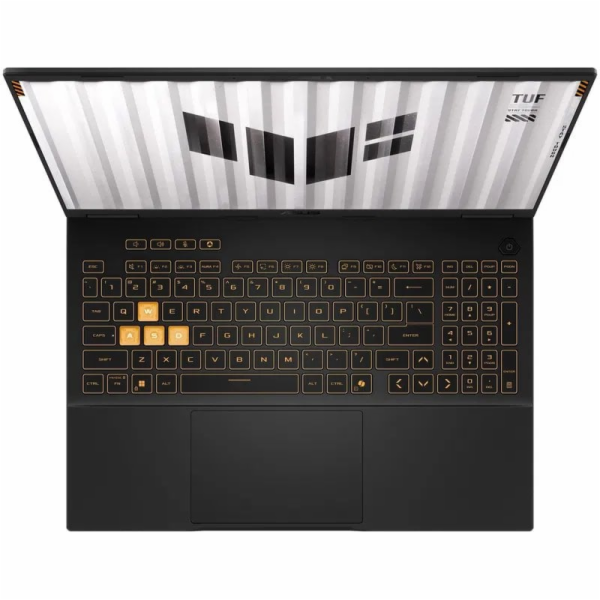

ASUS TUF Gaming F16/i5-13450HX/16GB/1TB SSD/RTX 5050/16" FHD/bez OS/Jaeger Gray

Marketing Name
ASUS TUF Gaming F16

Operating System
No preinstalled OS

Color
Jaeger Gray

Dimension (W x D x H)
35.4 x 26.9 x 1.79 ~ 2.73 cm (13.94" x 10.59" x 0.70" ~ 1.07")

Weight
2.20 Kg (4.85 lbs)

Processor
13th Gen Intel® Core™ i5-13450HX Processor 2.4 GHz (20M Cache, up to 4.6 GHz, 10 cores: 6 P-cores and 4 E-cores)

Chipset
Mobile Intel® HM770 Express Chipsets

Intergrated GPU
Intel® UHD Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5050 Laptop GPU

Graphic Wattage
115W (100W+15W)

Graphic Memory
8GB GDDR7

Panel Size
16-inch

Resolution
FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate
165Hz

Viewing Angle
85/85/85/85

Panel Tech
IPS-level

Brightness
300

Contrast Ratio
1000:1

NTSC %
72.00%

SRGB %
100.00%

Adobe %
75.35%

Glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
N/A

Support Dolby Vision HDR
N/A

On board memory
N/A

DIMM Memory
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC

Total System Memory
DDR5 16GB

Memory Slot
2x SO-DIMM slots

Memory Max.
64GB

Multi-channel memory technology
Support dual channel memory technology

Storage
1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
M.2 512GB PCIe SSD
M.2 1TB PCIe SSD
M.2 2TB PCIe SSD

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN
10/100/1000 Mbps

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x RJ45 LAN port
1x Thunderbolt™ 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps)
3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD IR Camera for Windows Hello

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB

Aura Sync
Yes

Touchpad
Touchpad
N/A

Speakers
2-speaker system

Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM)

Battery
90WHrs, 4S1P, 4-cell Li-ion

Power
Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal

Required charging power
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Ecolabels & Compliances
N/A
