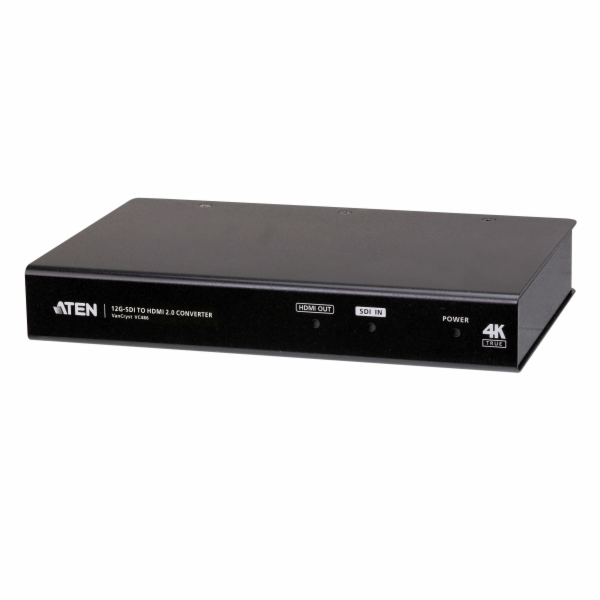

The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. The VC486 is a perfect choice for applications such as using HDMI televisions as SDI broadcast monitors, and connecting to video projectors.
Switches
Audio EDID Selection 1 x rotary switch (8-steps)
Control
USB 1 x Micro USB (FW upgrade)
Video Input
Interfaces 1 x SDI (BNC connector, inter-locked socket)
Impedance 75 ?
Video Output
Interfaces 1 x HDMI (Type-A) Female
1 x SDI (BNC connector, inter-locked socket)
Impedance HDMI 100 ? / SDI 75 ?
Video
Max. Data Rate 12 Gbps
Supported Resolutions 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 , 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Max. Distance [12G-SDI] up to 45m
[6G-SDI] up to 60m
[3G-SDI] up to 90m
[HD-SDI] up to 150m
HDMI up to 3m (3840 X 2160@60Hz)
Audio
Output 1 x HDMI (Type-A) Female
2 x RCA connector Female (R/L, analog audio)
Format Compliance with HDMI 2.0 with 2 CH Audio
SDI Formats HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12Gbps)
Connectors
Power 1 x DC 5V 3A, Lockable
Power Consumption DC5V:5.69W:27BTU
Environmental
Operating Temperature 0 - 40 oC
Storage Temperature -20 - 60 oC
Humidity 20 - 90% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 12.96 x 2.87 cm
(7.17 x 5.1 x 1.13 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
SDI signal re-clocked for high signal quality
Supports SDI standard SMPTE-292/424/425-3/2081/2082
Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)
Supported SDI formats:
• HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
• 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)
• 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
• 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)
Supports analog stereo audio output with RCA (R/L) connector
Automatic detection of input video signals
Analog Audio channel selection with a 8-step rotary switch
Locking power connector
Package Contents
1x VC486 12G-SDI to HDMI 2.0 Converter
1x Power Adapter
1x HDMI LockPro
4x Foot Pads
1x User Instructions
