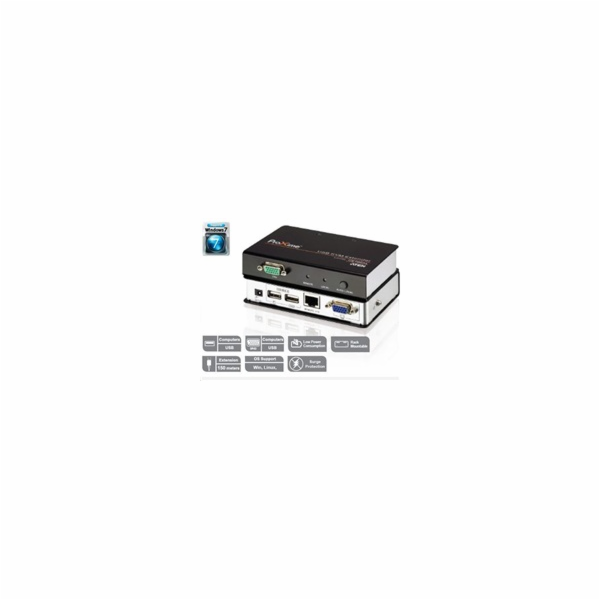

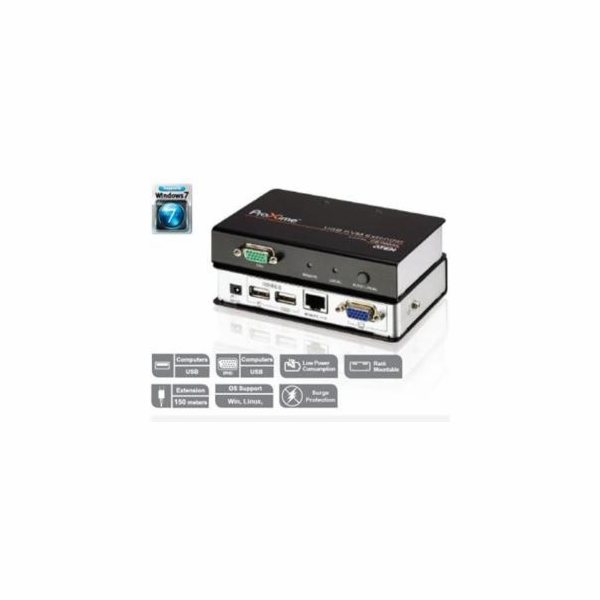

ATEN KVM extender CE-700A USB , max. 150 metrů

Popis produktu: he CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Features
Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Automatic gain control - adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux

Package Content
1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x Power Adapters
1x USB KVM Cable (1.8m)
2x Grounding Wires
1x Rack Mount Kit
1x User Manual
1x Quick Start Guide

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
