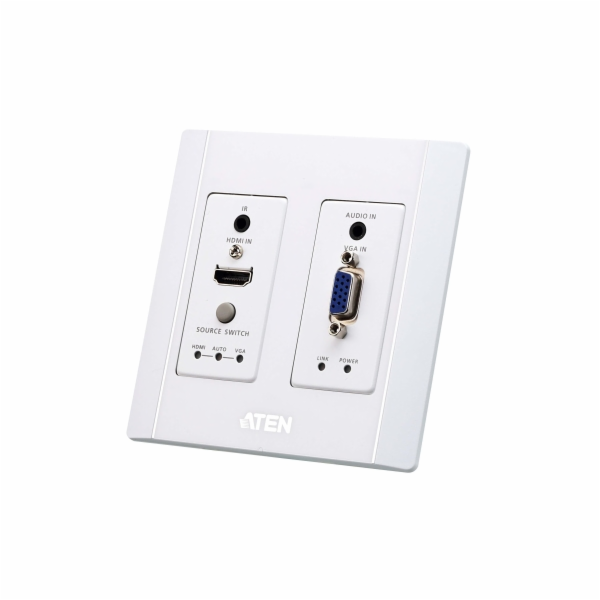

For mounting in standard 2-gang junction boxes, the VE2812AUST is a wall plate transmitter for sending VGA (with audio) and HDMI, as well as IR/RS-232 signals, up to 100 m over a single Cat 5e/6/6a cable that is designed to merge with the clean and elegant decor of modern meeting rooms, boardrooms, conference rooms, classrooms, and lecture halls.
Video Input
Interfaces 1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
Impedance HDMI: 100 ?
HDB-15 (VGA): 75 ?
Max. Distance HDMI: 3 m
HDB-15(VGA): 10m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection 1 x Push Button - HDMI, VGA and AUTO
Long Reach Mode Switch 1 x Slide Switch - ON/OFF
Firmware Upgrade 1 x Slide Switch - ON/OFF
Connectors
Unit To Unit 1 x RJ-45 Female
Power 1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH)
Power Consumption DC5V:3.04W:14BTU
DC48V:3.8W:18BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.21 kg ( 0.46 lb )
Dimensions (L x W x H) 10.42 x 8.79 x 5.19 cm
(4.1 x 3.46 x 2.04 in.)
Faceplate Dimensions (L x W x H) 11.43 x 11.43 x 0.65 cm
(4.5 x 4.5 x 0.26 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
ATEN VE2812AUST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With US Wall Plate design, the VE2812AUST can be conveniently mounted in a two - gang junction box. The VE2812AUST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AUST can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AUST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Note:
1. This model is also available in brown color – the part no. VE2812AUST2, which is a built-to-order product. To place an order, please contact your regional ATEN representative.
2. All pictures shown are for illustration purpose only. Actual color of the product is based on the product you receive.
Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Superior video quality:
• HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
• VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Designed to mount in a two-gang junction box, compatible with US type
Built-in PoH (Power over HDBaseT) function – the VE2812AUST receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AUST to automatically switch to a newly plugged-in source
Functions as a switch or a converter
• A Switch: Connects two sources (HDMI or VGA)
• A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
Supports RS-232 channel transmission or command mode for source switch control
Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R,VE601R, VE901R or future ATEN HDBaseT Receivers
Plug-and-play
LED indication of sources and device status
Ready for Plug-and-Play
Designed to sleekly immerse with installation surfaces with a hidden snap design for its face plate, the VE2812AUST supports legacy and popular AV interfaces like VGA, HDMI, and stereo audio so that you’re ready to connect any device that is brought into the room.
4K@100m Extended Transmission
Delivers superior video quality up to 4K@100m and 1080p@150m via a single Cat 6a / ATEN 2L-2910 Cat 6 cable, extending connections to where ever your output devices are located. Easily pair from our range of HDBaseT Receivers to support diverse display interfaces such as DisplayPort, HDMI, and DVI.
Multiple, Efficient Switching Options
The Source Switch button enables instant switching when required, while Auto Switch Mode supports automatic switching to a newly plugged-in source and instant switching back to the previous source on disconnection. Also supports RS-232 for switching via alternate control interfaces.
Convenient Power Access
Supports Power over HDBaseT (PoH) and allows powering from another Power Source Equipment (PSE) device. No more worries about extending or installing power outlets.
AV Extension and More
In addition to transmitting video and audio, the VE2812AUST maximizes HDBaseT™ technology capabilities and offers IR and RS-232 Channels to control devices located in hard-to-reach areas as well as streamline the user operation experience.
Perfectly Blends with the Environment
Comes with a stylish and sleek design for you to elegantly immerse extensions into the décor of any room. A brown* option is also available for customization to complement even the most refined installation environment.
*Note: The Brown color option is made-to-order.
Package Contents
1x VE2812AUST HDMI & VGA HDBaseT Transmitter with US Wall Plate / PoH
1x 3 Pin RS-232 Terminal Block
1x 2 Pin Power Terminal Block
1x Faceplate
1x Power Adapter
1x User Instructions
