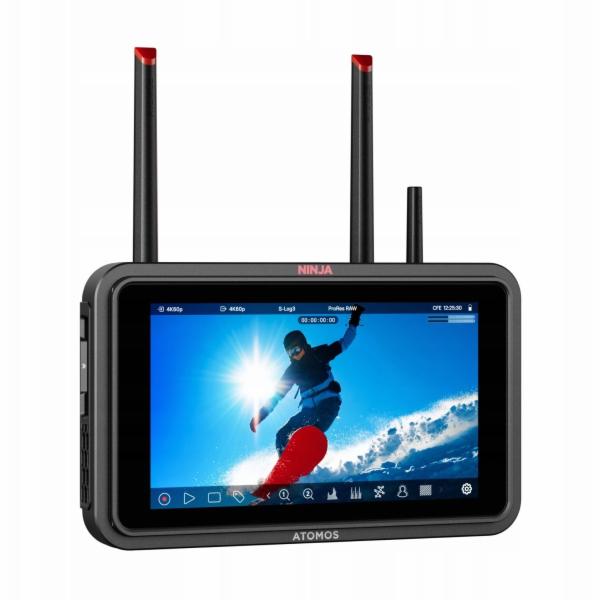

Atomos Ninja TX

Full HD video záznam (1080p): 120fps
Uhlopříčka obrazovky (cm): 13,2
Úhlopříčka obrazovky (palce "): 5,2
Rozlišení: 1920 x 1080
Jasnost (cd/m2): 1500
Poměr stran: 16:9
zásobování energií: Aku/síťové napájení
Typ aku: Lithium-Ionen
Počet potřebných baterií: 1
Včetně baterií: 1
Typ paměti: SD
Audio vstup: ano
Audio výstup: ano
HDMI-Vstup: 1x
HDMI-Výstup: 1x
SDI vstup: 1x
USB: 2x USB-C / 1x USB-C PD
Typ: Monitor-Recordér
Barva: černá
Šířka (mm): 151
Výška (mm): 92
Hloubka (mm): 36
Hmotnost (g): 400

Atomos Ninja TX – Monitor Recorder with HDMI, SDI, and Wi-Fi

With the Ninja TX, you get a compact recording and monitoring device that combines HDMI 2.0, 12G-SDI, and Wi-Fi 6E. You can save your recordings directly to CFexpress Type B or USB-C media and use professional codecs such as Apple ProRes, Avid DNx, and H.265/H.264. The bright 5-inch touchscreen display with 1500 nits ensures clear visibility – even in direct sunlight.

Connected and Flexible
The monitor supports camera-to-cloud workflows with direct uploads to ATOMOSphere, Frame.io, and Dropbox. Timecode synchronization via Bluetooth or wireless technology simplifies the synchronization of multiple devices. Firmware updates are conveniently available via Wi-Fi – completely wireless.

Professional tools for your setup
You can use a wide range of monitoring tools such as focus peaking, zebras, false color, and waveforms. Support for log formats and custom 3D LUTs ensures precise color control. With HDMI and SDI pass-through options and cross-conversion, the Ninja TX flexibly adapts to your workflow.

Features:


HDMI 2.0 and 12G-SDI input and output for flexible connectivity
Wi-Fi 6E for wireless camera-to-cloud integration and OTA updates
Recording to CFexpress Type B or USB-C for fast data storage
Support for Apple ProRes, Avid DNx, and H.265/H.264 for professional formats
5-inch 1500-nit touchscreen for clear viewing in all lighting conditions
Timecode synchronization via Bluetooth or wireless for precise tuning
Monitoring tools such as focus peaking, zebras, and false color for optimal control
Cross-conversion between HDMI and SDI for flexible signal routing
Direct upload to ATOMOSphere, Frame.io, and Dropbox for fast sharing
