Atomos Shinobi 7RX

Full HD video záznam (1080p): 60fps
4k video záznam (UHD): 30fps
Uhlopříčka obrazovky (cm): 17,78
Úhlopříčka obrazovky (palce "): 7
Rozlišení: 1920 x 1200
Jasnost (cd/m2): 2200
Poměr stran: 16:10
zásobování energií: přes USB / baterii
Typ aku: Lithium-Ionen
Počet potřebných baterií: 1
Včetně baterií: ne
Typ paměti: SD
HDMI-Vstup: 1x
HDMI-Výstup: 1x
Připojení sluchátek: ano
SDI vstup: 1x
SDI výstup: 1x
USB: 1x USB-C PD
Typ: Monitor
Barva: černá
Šířka (mm): 198
Výška (mm): 133
Hloubka (mm): 39
Hmotnost (g): 580

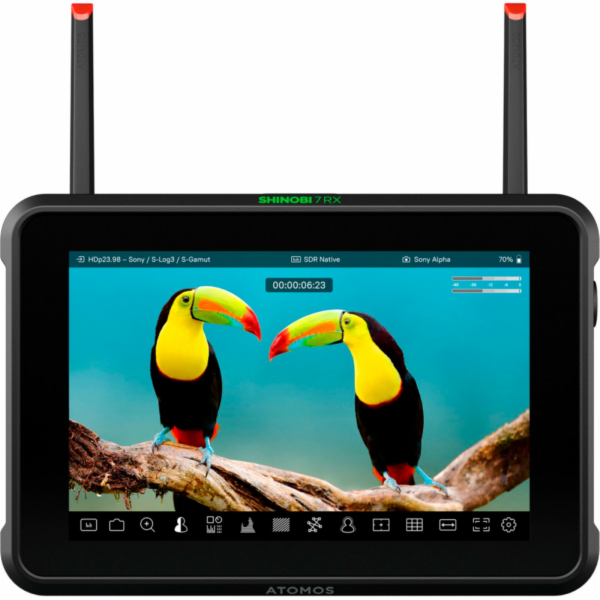

Atomos Shinobi 7 RX monitor and receiver

A precise look at your footage is important, especially when light conditions change and every detail needs to be right. With a large display it is easier to judge scenes and make fitting decisions. You keep an eye on your recordings and react faster to changes without searching or correcting for a long time. This overview supports you during demanding projects.

Image quality that supports your work
The clear view on the screen goes together with expressive colours and stable brightness levels. This helps you in situations where reflections and difficult surroundings would otherwise take much time. At the same time you stay flexible because different monitoring views for professional use are included. This way the monitor suits workflows that require high attention.

More control on set
Through the control functions the camera is adjusted directly through the monitor which makes workflows smoother. Touch gestures help you with quick adjustments while the wireless transmission saves extra steps. Combined with the option to use different colour profiles the display adapts to many camera types. This allows you to work reliably even when requirements change.

Features:


7-inch HDR display with high peak brightness for clear visibility in bright surroundings
Professional analysis tools support exposure and focus with exact control displays
HDMI and SDI ports make it easier to work with different camera systems
Camera control through USB-C supports fast adjustments directly on the monitor
Touch-to-focus assists targeted focusing without detours
Integrated 5G WiFi transfers signals from the Atomos TX with low delay for smooth workflows
Real-time processing of Log, PQ and HLG signals gives you an extended dynamic view during filming
Two NPF slots increase operating time with flexible power supply
