Atomos Shogun classic Pro Edition

Full HD video záznam (1080p): 60fps
4k video záznam (UHD): 60fps
Uhlopříčka obrazovky (cm): 17,78
Úhlopříčka obrazovky (palce "): 7
Rozlišení: 1920 x 1200
Jasnost (cd/m2): 3000
Kontrastní poměr: 1.000.000:1
Poměr stran: 16:10
zásobování energií: Aku/síťové napájení
Typ aku: Lithium-Ionen
Počet potřebných baterií: 1
Včetně baterií: 2
SDI vstup: 4x
XLR- Vstupy: 1x
Výstup XLR: 2x
USB: 1x USB-C
Typ: Monitor-Recordér
Barva: černá
Šířka (mm): 127
Výška (mm): 45
Hloubka (mm): 214
Hmotnost (g): 738

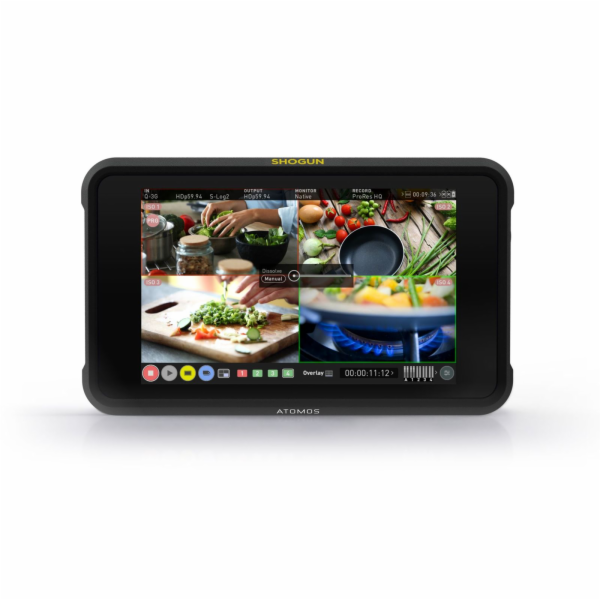

Atomos Shogun Classic Pro Edition

The Atomos Shogun Classic Pro Edition is a state-of-the-art all-in-one solution for professional video recording and live streaming. It combines a 7-inch HDR monitor, a recorder and a mixer in one compact device.

With its comprehensive features and versatile functions, the Atomos Shogun Classic Pro Edition is the perfect choice for demanding productions. The Atomos Shogun Classic Pro Edition is ideal for professional video productions, live events and video podcasts.

Features:

7-inch HDR monitor: the monitor offers a resolution of 1920 x 1200 pixels and a brightness of up to 3000 nits, providing exceptional detail, colour and contrast.4K HDR recording: record in real time in ProRes, CinemaDNG and Avid DNx formats.
Multi-cam switching: Four SDI inputs enable seamless transitions between live video streams.
ISO recording: Simultaneous recording of up to four video sources (1080p60).
Monitoring tools: Built-in tools such as false colour profiles, adjustable focus peaking and 1:1 and 2:1 pixel magnification.
Custom 3D LUTs: For precise colour corrections and adjustments.
Robust design: Glass fibre reinforced polycarbonate housing and active heat sink with fan.

Technical data:


Display panel: IPS panel (capacitive touch)
Resolution: 1920 x 1200 (1920 x 1080 image display)
Bit depth: 10-bit (8+2 FRC)
Backlight: Zone backlight (full-array local dimming)
Input voltage: 6.2V to 16.8V
Compatible batteries: 2x NP-F / L-Series batteries
DC input: 1x DC input (6.2 - 16.8 V)
Dimensions: 214 mm x 127 mm x 45 mm
Weight: 738 g


Scope of delivery:


Atomos Shogun Classic Pro Edition
HPRC hard case (yellow)
USB 3.0 docking station
1x D-TAP to DC spiral cable
5x Master Caddy II
1x Fast charger
12V-3A AC power supply
2x 5200 mAh battery (NP-F750)
Sun visor for Shogun Classic
