HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (Must select min 1 power supply) JH323A RENEW jen rozbaleno
Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding. These switches provide four 10-Gigabit Ethernet (10GbE) interfaces and use IRF (Intelligent Resilient Fabric) technology to virtualize multiple switches into one, enhancing resilience and ease of management. These switches offer high availability, simplified management, robust security policies, and support for dual modular power supplies. They are suitable for edge deployments and small data center server aggregation.
Key Features
Scalable 10GbE uplinks and 9-chassis IRF with 80 GB/s stacking
PoE+ (30W per port) across all ports
4 built-in SFP+ 10GbE uplinks
Support for OpenFlow 1.3
MACsec security support
Standard Features
Software-Defined Networking
OpenFlow 1.3: Enables SDN by separating control and data planes.
Management
Remote CLI management, RADIUS/HWTACACS authentication
Multiple config files, session logging, SNMP/RMON support
LLDP and sFlow for network visibility
Remote mirroring and management VLANs
Security
ACLs (IPv4/IPv6, VLAN, port-based)
IEEE 802.1X, MAC-based authentication, port security
Guest VLAN, secure management via SSH/SSL/SNMPv3
DoS protection (DHCP guard, IP source guard, ARP protection)
IPv6 security: DHCPv6, ND Snooping, IPv6 source guard
Quality of Service (QoS)
Broadcast rate control, advanced classifier-based QoS
SP, WRR, SP+WRR queue management
Traffic policing with CAR and line rate support
Connectivity
Auto-MDIX, IEEE 802.3x flow control
Up to 48x 1GbE ports, 4x 10GbE SFP+
IEEE 802.3at PoE+ and pre-standard PoE device support
Ethernet OAM (802.3ah), jumbo frames up to 9KB
Performance
Non-blocking fabric (up to 216Gb/s)
Wirespeed ACLs using TCAM
High Availability
IRF for simplified redundancy and high availability
Smart Link failover < 100ms
Spanning Tree (STP, RSTP, MSTP, PVST+)
Dual internal redundant power supply (up to 1440W PoE+)
Layer 2 Switching
32K MAC table, 4094 VLANs (802.1Q), QinQ
Port aggregation, DLDP, jumbo frames
Layer 3 Services and Routing
Static routing (IPv4 & IPv6), RIP v1/v2
Policy-Based Routing (PBR), ARP, DHCP, loopback interfaces
UDP helper, route maps, DHCP relay/server
Convergence and Voice
LLDP, LLDP-MED, CDP compatibility
Voice VLANs, IP multicast snooping (IGMP), MSDP
PoE allocation via LLDP-MED, IEEE class, or manually
Manageability
Dual flash images, multiple config storage
IPv6 management tools: pingv6, Telnetv6, SNMPv6, etc.
Virtual cable tests for diagnostics
Warranty and Support
Limited Lifetime Warranty For details, see: HPE Warranty Summary Software and support: HPE Networking SupportEnvironmental Specification

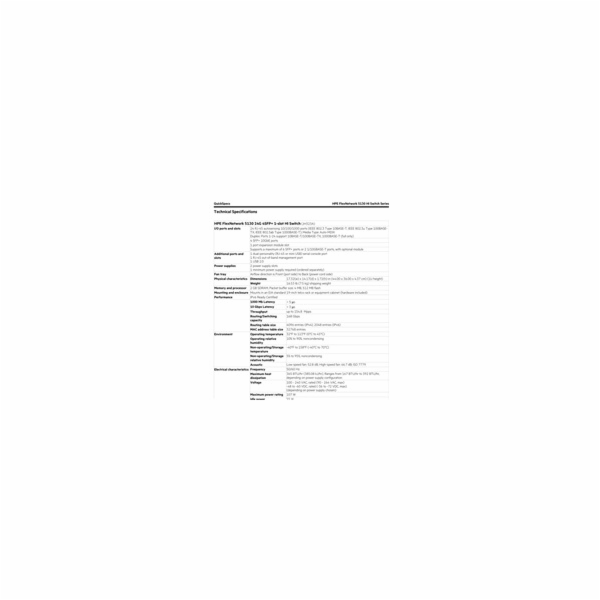

HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (JH323A)
Power Supply Options
HPE X361 150W 100–240VAC to 12VDC Power Supply – Model: JD362B
HPE X361 150W 48–60VDC to 12VDC Power Supply – Model: JD366B
I/O Ports and Slots
24 × RJ-45 autosensing 10/100/1000 ports
4 × SFP+ 10GbE ports
1 × Port expansion module slot (supports 6 SFP+ or 2 1/10GBASE-T ports)
1 × Dual-personality console port (RJ-45 or mini USB)
1 × Out-of-band management port (RJ-45)
1 × USB 2.0 port
Power and Cooling
2 × Power supply slots (1 required)
Airflow: Front (port side) to Back (power side)
Physical Characteristics
Dimensions: 17.32” W × 14.17” D × 1.72” H (1U)
Weight: 7.5 kg (16.53 lb)
Memory and Performance
Memory: 2 GB SDRAM, 512 MB Flash
Packet buffer: 4 MB
Throughput: up to 154.8 Mpps
Switching Capacity: 168 Gbps
MAC Address Table: 32,768 entries
Routing Table: 4096 IPv4, 2048 IPv6
Latency: < 5 µs (1G), < 3 µs (10G)
Environmental
Operating Temp: 0°C to 45°C (32°F to 113°F)
Storage Temp: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 90% (operating), 5% to 95% (non-op)
Acoustic: 52.8 dB (low), 66.7 dB (high)
Electrical Characteristics
Frequency: 50/60 Hz
Voltage: 100–240 VAC / -48 to -60 VDC (depending on PSU)
Max Power: 107 W
Idle Power: 55 W
Heat Dissipation: 365–392 BTU/hr
Note: - Idle power reflects device with no active ports. - Max power and heat values are based on worst-case fully loaded configuration.
Certifications
Safety:
UL 60950-1, EN 60950-1, IEC 60950-1, FDA 21 CFR, RoHS
Emissions:
FCC Class A, EN 55022 Class A, CISPR 22/24, VCCI, EMC Directive
Immunity:
EN 55024, EN 300 386
Management
CLI, Web GUI, SNMP v1/v2/v3
IMC – Intelligent Management Center compatible
DHCP, Telnet, TFTP, FTP, SSH, NTP, RMON
Standards and Protocols
General Networking Protocols
IEEE 802.1 series (ad, ak, AE, AX, D, p, Q, s, v, w, X)
IEEE 802.3 series (i, u, x, ab, ac, ad, ae, af, at, az, z)
IPv4/IPv6: RFC 791, RFC 2460, RFC 4291, etc.
Routing/ARP: RFC 826, 1812, 1256, etc.
Multicast: RFC 2236, RFC 3810, RFC 4541
DHCP/BOOTP: RFC 951, RFC 2131, RFC 3046, etc.
Security Protocols
IEEE 802.1X Port Access Control
MACsec (802.1AE)
RADIUS (RFC 2138, 2865), TACACS+ (RFC 1492)
SSL, SSHv2, SNMPv3 security models
Network Management
SNMP v1/v2c/v3 (RFC 1157, 1901–1907, 3416–3418)
LLDP (IEEE 802.1AB), LLDP-MED (ANSI/TIA-1057)
RMON (RFC 2819), Entity MIB, Interface MIB
IMC support, CLI, Telnet, SSH, HTTP, HTTPS
QoS/CoS Support
RFC 2474, 2597, 3246, 3260 – Differentiated Services
MIBs and SNMP
MIB-II (RFC 1213), Ethernet MIBs (RFC 2665, 2668)
Bridge MIB (RFC 1493), RMON (RFC 1757)
Power Ethernet MIB (RFC 3621), Interface MIB (RFC 2863)
