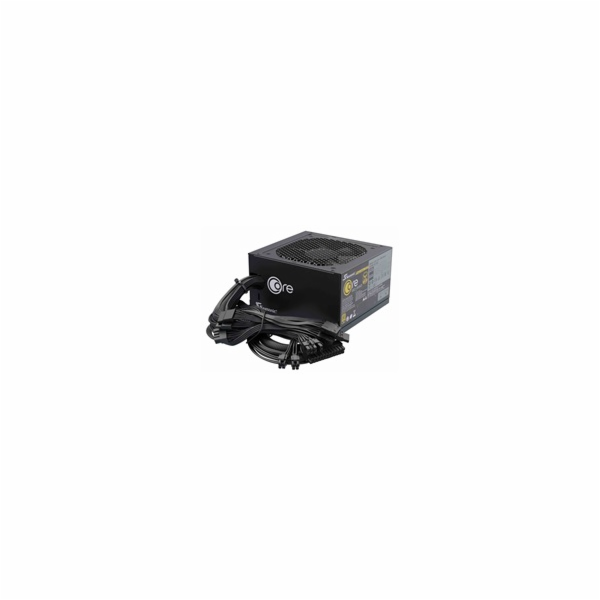

BAZAR - SEASONIC zdroj 650W CORE GM-650 (SSR-650LM), ATX, 12cm fan, 80+ GOLD - Po opravě

The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
80 PLUS Gold
The CORE GM Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
SEMI-MODULAR CABLES
Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.
S 2 FC - Smart and Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
feature summary



80 PLUS Gold certified
Semi-modular
Tight Voltage Regulation




S2FC - Smart and Silent Fan Control
DC to DC Converter Design
105 °C Japanese Capacitor
7 years warranty

Specifications



CORE-GM-650



Technical Specifications




80PLUS
Gold


Cybenetics Efficiency Level
TBA


Cybenetics Noise Level
TBA


Form Factor
Intel ATX 12 V


Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)


Fan Information
Fan Size
120 mm


Fan Control
Smart and Silent Fan Control


Fan Bearing
Sleeve Bearing


Life Expectancy
25,000 hours at 40 °C, 15 % - 65 % RH


Cable Information
Modularity
Semi-modular


Cable type
Flat black cables


Electrical Features
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)


MTBF @ 25 °C, excl. fan
100,000 hours


AC Input
Full Range


Protection
OPP, OVP, OCP, OTP, SCP, UVP


Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, CE, FCC


Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH


Warranty
7 Years






Power Output




AC Input
Voltage: 100 V - 240 V


Current: 9 - 4.5 A


Frequency: 50 Hz - 60 Hz


DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB


Maximum Power
20 A
20 A
54 A
0.3 A
3 A


100 W
648 W
3.6 W
15 W


Total continuous power
650 W







Cables

CORE-GM-650




Cable type
Connector(s) per cable
Total length (mm)
Number(s) of cable(s) included





MB (24/20 pins)
1
610
1



CPU (8/4 pins)
1
650
1



PCIe (8/6 pins)
2
750
2



PCIe (8/6 pins)
1
750
0



SATA
4
810
1



SATA
4
860
0



SATA
4
760
0



SATA
2
700
0



SATA
2
570
0



SATA
2
470
0



SATA
2
450
1



Molex
3
690
1



Molex
2
470
0



Molex to SATA 3.3 Adapter
2
300
0



Molex to FDD Adapter
1
101
0
