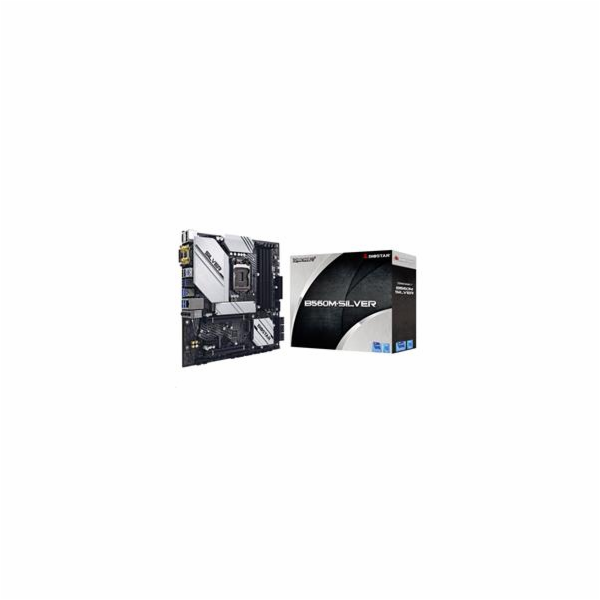

BIOSTAR B560M-SILVER, LGA 1200, Intel B560, 4xDDR4, HDMI/DVI-D/DP, 2xPCI-E x16, 1xPCI-E x1, 6xSATA, 2

Main Board Desktop - Processor


Chipset:
Intel B560


Supports Central Processor Unit:
Intel 10th Gen Processors
Intel 11th Gen Processors


CPU Socket Standard:
Socket 1200


CPU Maximum Quantity Supports:
1


Main Board Desktop - Memory


Memory Type:
DDR4 SDRAM


Memory Form Factor:
DIMM 288-pin


Memory Speed:
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3200MHz(PC4-25600)


Maximum Installable System Memory Storage Capacity:
128 GB


Memory Slot Total Quantity:
4


Provides Error Checking Method:
non-ECC


Memory Features:
XMP


Controller


Integrated:
Storage Controller:
SATA III-600 (6)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))


Support:
Wi-Fi Controller:
1 x M.2 (Key E)


Main Board Desktop - Audio Output


Audio Integrated:
yes


Device Location:
Integrated


Audio Chipset:
Realtek ALC1220


Audio Output Mode:
7.1 Channel Surround


Compliant Audio Standards:
High Definition Audio


Main Board Desktop - Networking Specifications


LAN Integrated:
yes


LAN Chipset:
Realtek RTL8125B


Data Link Protocol Supports:
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps


Slot Provided


PCI Express 4.0 x16:
1


PCI Express 3.0 x16:
1


PCI Express 3.0 x1:
1


Interface Provided


Wi-Fi Antenna:
2


PS/2:
1


HDMI:
1 (HDMI (Type A))


DVI:
1 (DVI-D)


DisplayPort:
1


LAN:
1 (RJ-45)


Audio Interface:
3 (3.5-mm minijack)


USB 3.2 Gen 2 x2:
1 (USB 3.2 (type C))


USB 3.2 Gen 1:
3 (USB 3.2 (type A))


USB 2.0:
2 (USB 2.0 (type A))


USB 3.2 Gen 2:
2 (USB 3.2 (type A))


Main Board Desktop - Mainboard Features


Hardware Monitoring:
Chassis Fan Tachometer
CPU Fan Tachometer
CPU Temperature
System Temperature
System Voltage
CPU Fan multi-speed control


Power Connectors Type:
24+8 pin


Mainboard Features:
Intel Optane Memory Ready


Main Board Desktop - Software


Supported Operating System:
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit


Miscellaneous


Cable Included:
4 x SATA Data Cables


Included Accessories:
I/O Shield
Quick Start Guide
DVD


Main Board Desktop - Dimensions&Weight


Form Factor:
Micro ATX


Height (mm):
244 mm


Width (mm):
244 mm
