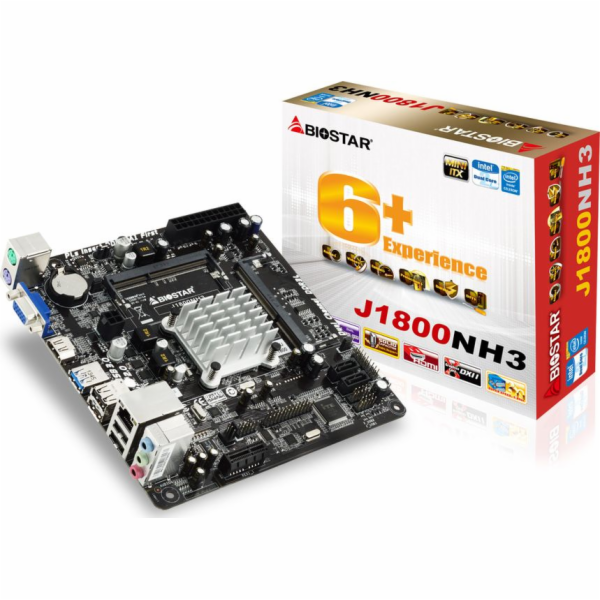

BIOSTAR, Intel J1800, MiniITX, GbE

Chipset
Baytrail-D


CPU
Intel® Celeron J1800(2.41GHz) Dual-Core Processor


MEMORY
Support Dual Channel DDR3L 1333 MHz
2 x DDR3 SO-DIMM Memory Slot
Max. Supports up to 16GB Memory
The DIMM must be installed to DIMMA1 slot first.


INTEGRATED VIDEO
Intel HD Graphics
Supports DX11
Supports HDCP


STORAGE
2 x SATA II Connector


LAN
Realtek RTL8111G - 10/100/1000Mb/s Controller


AUDIO CODEC
Realtek ALC662 6-Channel HD Audio


USB
1 x USB 3.0 Port
4 x USB 2.0 Port
2 x USB 2.0 Header


EXPANSION SLOT
1 x PCI-E 2.0 x1 Slot


REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x USB 3.0 Port
4 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks


INTERNAL I/O
2 x USB 2.0 Header
2 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
2 x System Fan Connector
1 x COM Port Header
1 x Printer Port Header


H/W MONITORING
CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring


DIMENSION
Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )


OS SUPPORT
Supports Windows 7 / 8 / 8.1 / 10(x64)


BUNDLE SOFTWARE
BIO-Remote2
Smart Speed LAN


ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide


FEATURES
Supports Solid capacitor
BIO-FLASHER
Supports Charger Booster
Supports BIOS Online Update


Caution!! The specification and pictures are subject to change without notice!
