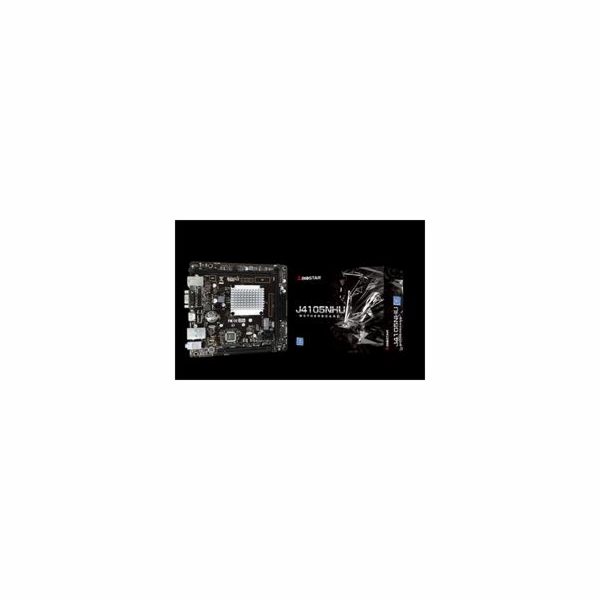

Biostar J4105NHU BIOSTAR, Intel J4105, MiniITX, GbE LAN, 7.1CH

Chipset
Intel J4105


CPU SUPPORT
Intel Celeron J4105 processor



MEMORY
Supports Dual Channel DDR4-1866/ 2133/ 2400
2 x DDR4 DIMM Memory Slots, Max. Supports up to 8 GB Memory
Each DIMM supports non-ECC 4GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.


INTEGRATED VIDEO
By CPU model
Supports DX12


STORAGE
2 x SATA III (6Gb/s) : Supports AHCI
1 x M Key - M.2_10Gb/s (PCIe2.0) : Supports PCIe & SATA SSD


LAN
RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability


AUDIO CODEC
ALC887
7.1 Channels, High Definition Audio


USB
2 x USB 3.2(Gen1) ports (2 on rear I/Os)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)


EXPANSION SLOT
1 x PCIe 2.0 x16 Slot
1 x E Key - M.2 Slot (Optional)


REAR I/O
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x VGA Port
2 x USB 3.2(Gen1) Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack


INTERNAL I/O
2 x SATA III - 6Gb/s Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
2 x COM Serial Headers
1 x Printer Port Header
1 x Clear CMOS Header
1 x TPM Header (Optional)


H/W MONITORING
CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring


DIMENSION
Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )


OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.


BUNDLE SOFTWARE
BullGuard


ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide


FEATURES
BIO-FLASHER


Caution!! The specification and pictures are subject to change without notice!
